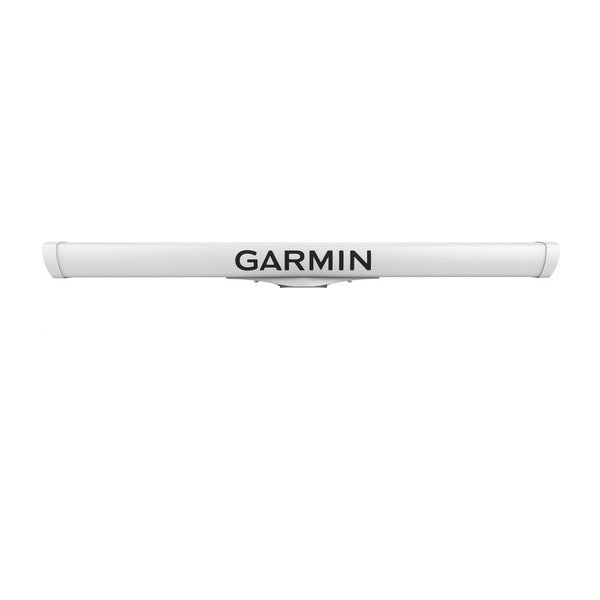

Garmin 6FT GMR Fantom Remanufactured Open Array Radar Antenna - Professional Marine Radar Component

Model: 010-N1366-00 | Garmin | Remanufactured

Professional-Grade Radar Performance at Exceptional Value

Upgrade your marine radar capabilities with this expertly remanufactured 6-foot open array antenna designed specifically for Garmin GMR Fantom radar systems. This precision-restored antenna delivers the same exceptional performance as new units while providing outstanding value for serious mariners seeking professional-grade radar detection capabilities.

🎯 Superior Target Resolution

1.25° horizontal beamwidth provides exceptional target separation and precise bearing accuracy

🔄 Remanufactured Excellence

Factory-restored to original specifications with rigorous quality testing and validation

⚡ GMR Fantom Compatible

Designed exclusively for use with Garmin GMR Fantom radar processor units

Technical Specifications

Physical Dimensions

Array Length: 6 feet (1.83 meters)

Overall Dimensions: 76.3" x 5.4" x 6.9"

Weight: 23.6 pounds (10.7 kg)

Rotation Speed: 24/48 RPM selectable

Radar Performance

Beam Width: 1.25° horizontal x 23° vertical

Antenna Gain: High-gain design for maximum target detection

Compatible Systems: All GMR Fantom radar processors

Part Number: 010-N1366-00

GMR Fantom System Compatibility

This antenna is designed to work with all Garmin GMR Fantom radar processor units. Performance characteristics will depend on the specific processor used:

GMR Fantom 6 (40W)

• Power Output: 40 watts
• Range: 20 feet to 72 nautical miles
• Target Detection: Excellent short and medium range performance
• Applications: Coastal cruising, sportfishing, day sailing

GMR Fantom 126 (120W)

• Power Output: 120 watts
• Range: 20 feet to 96 nautical miles
• Target Detection: Enhanced long-range detection capabilities
• Applications: Offshore cruising, commercial fishing

GMR Fantom 256 (250W)

• Power Output: 250 watts
• Range: 20 feet to 96+ nautical miles
• Target Detection: Maximum range and resolution performance
• Applications: Commercial operations, long-range offshore navigation

Remanufactured Quality Assurance

This remanufactured antenna undergoes Garmin's comprehensive restoration process to ensure it meets original factory specifications:

🔍

Inspection & Testing

Complete disassembly and inspection of all components with rigorous testing protocols

🔧

Component Replacement

Replacement of worn or degraded parts with genuine Garmin components

⚙️

Calibration & Alignment

Precision calibration and alignment to factory specifications for optimal performance

✅

Quality Validation

Final testing and validation to ensure performance meets original equipment standards

Installation Requirements

⚠️ Pedestal Required (Not Included)

This antenna requires a separate GMR Fantom pedestal unit for proper installation and operation. The pedestal contains the drive motor, slip ring, and mounting hardware necessary for antenna rotation.

Required Components:

• GMR Fantom pedestal unit (sold separately)
• Appropriate radar processor (GMR Fantom series)
• Network cable for data connection
• Power cable for pedestal power
• Mounting hardware for pedestal installation

Installation Considerations:

• Mount at least 8 feet above deck level for optimal performance
• Ensure 360° rotation clearance around antenna
• Position away from metal structures that could cause interference
• Consider impact on vessel stability due to weight and wind loading
• Professional installation recommended for optimal performance

Advanced GMR Fantom Radar Features

When paired with compatible GMR Fantom processors, this antenna enables advanced radar capabilities:

MotionScope™ Technology

Uses Doppler effect to detect and highlight moving targets in different colors, helping identify potential collision risks and track vessel movements in real-time.

Pulse Compression Technology

Advanced signal processing provides high-resolution target detection with exceptional clarity, even in challenging weather conditions.

Auto Bird Gain

Specialized mode optimized for detecting flocks of birds on the water's surface, valuable for locating feeding fish and productive fishing areas.

MARPA Target Tracking

Enables simultaneous tracking of up to 10 targets with automatic collision risk assessment and CPA (Closest Point of Approach) calculations.

True Echo Trails

Displays fading trails of moving targets to help visualize traffic patterns and vessel movements over time.

Weather Detection

Excellent precipitation detection capabilities help identify and avoid severe weather systems during navigation.

Professional Marine Applications

🎣 Commercial Fishing

Essential for safe navigation in crowded fishing areas, weather avoidance, and bird detection for locating productive fishing grounds.

🚢 Commercial Vessels

Professional-grade radar performance for cargo vessels, workboats, and service vessels operating in challenging marine environments.

⛵ Serious Recreational Boating

Advanced radar capabilities for offshore cruising, yacht racing, and recreational vessels requiring professional-grade navigation equipment.

🛟 Coast Guard & Patrol

Reliable performance for search and rescue operations, patrol duties, and maritime enforcement activities.

Installation & Support Resources

Professional Installation

Due to the technical complexity of radar installation and the critical nature of proper alignment, professional installation by a certified Garmin marine dealer is strongly recommended. Proper installation ensures:

• Optimal radar performance and target detection
• Proper antenna alignment and calibration
• Safe installation meeting marine electrical standards
• Integration with existing navigation systems
• Warranty compliance and technical support access

Technical Documentation

Comprehensive installation and operation guides are available through Garmin's support resources:

• GMR Fantom installation instructions
• System integration guides for various MFD models
• Troubleshooting and maintenance procedures
• Network configuration and setup guides
• Performance optimization recommendations

Frequently Asked Questions

What is included with this remanufactured antenna?

This item includes only the 6-foot remanufactured open array antenna. A separate GMR Fantom pedestal, radar processor, and associated cables are required for a complete radar system and are sold separately.

How does remanufactured quality compare to new equipment?

Garmin remanufactured antennas undergo rigorous factory restoration to meet original specifications. They provide the same performance as new units while offering significant cost savings, making them an excellent choice for budget-conscious professional and recreational applications.

Which GMR Fantom processors are compatible with this antenna?

This antenna is compatible with all GMR Fantom radar processors including the GMR Fantom 6 (40W), GMR Fantom 126 (120W), and GMR Fantom 256 (250W). Performance characteristics will vary based on the processor's power output and capabilities.

What are the mounting height requirements for optimal performance?

For optimal radar performance, mount the antenna at least 8 feet above deck level with clear 360° rotation access. Higher mounting improves radar horizon and target detection range, while proper positioning minimizes interference from vessel structures.

Can I install this antenna myself?

While technically possible for experienced marine electronics installers, professional installation is strongly recommended. Proper radar installation requires expertise in marine electrical systems, antenna alignment, and system integration for optimal performance and safety compliance.

What maintenance does this antenna require?

Regular maintenance includes cleaning the radome to remove salt buildup, inspecting connections for corrosion, checking rotation smoothness, and ensuring mounting hardware remains secure. Professional service may be required for internal component maintenance or alignment issues.

Exceptional Value for Professional Performance

This remanufactured GMR Fantom antenna represents outstanding value for mariners seeking professional-grade radar capabilities without the full cost of new equipment. Key advantages include:

💰 Cost-Effective Solution

Significant savings compared to new equipment while maintaining full performance capabilities

🔬 Factory Quality

Garmin's rigorous remanufacturing process ensures reliability and performance equal to new units

🌊 Proven Technology

GMR Fantom's solid-state radar technology provides superior reliability compared to traditional magnetron systems

🔧 System Expandability

Compatible with Garmin's comprehensive marine electronics ecosystem for integrated navigation solutions

Garmin Remanufactured 6' Open Array Antenna Only for Fantom Pedestal

Model: 010-N1366-00

Use this atop a Fantom Pedestal, not included

What's in the Box:

• 6' Remanufactured Array Only

Garmin is only suitable for the 6-inch open array antenna model of Fantom base: 010-N1366-00 is used above the Fantom base, not included. What's in the box: Only suitable for 6'Array array... !!!!----
