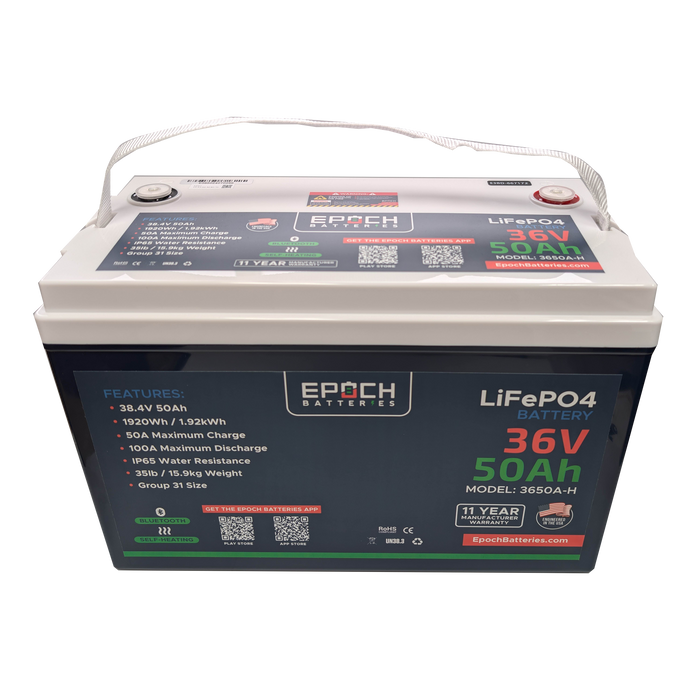

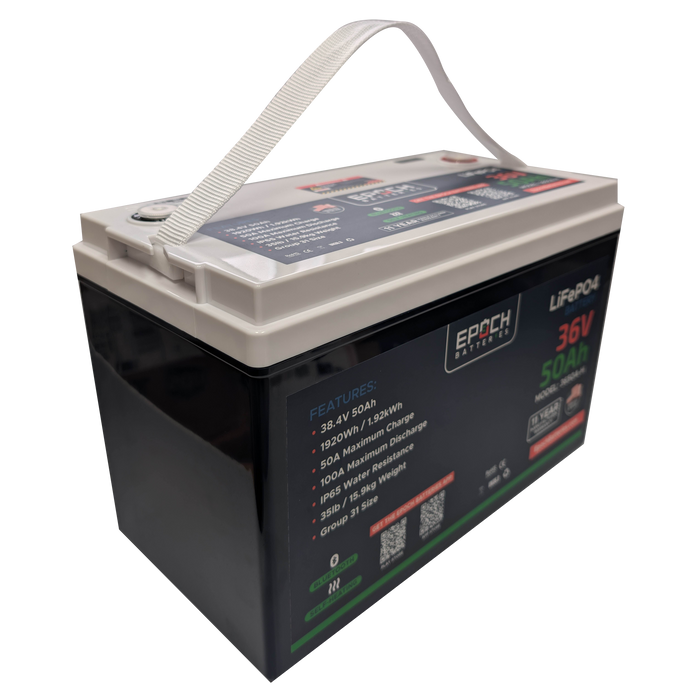

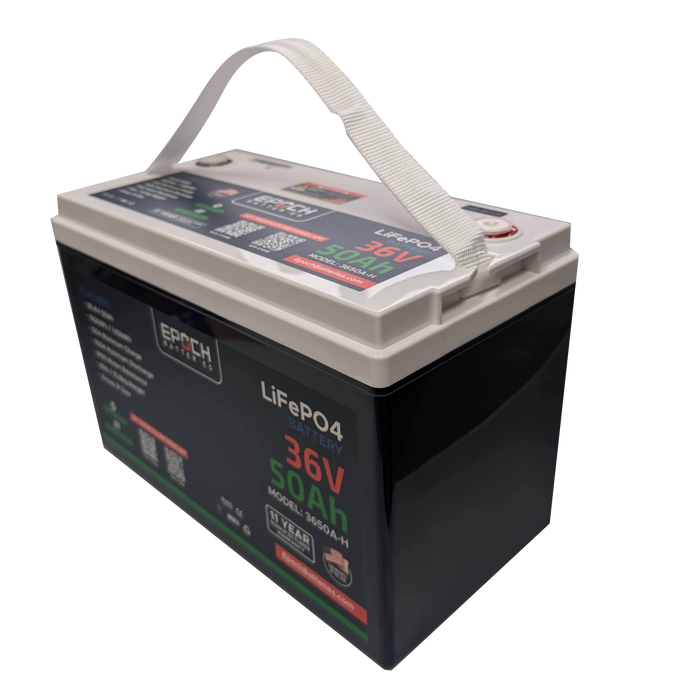

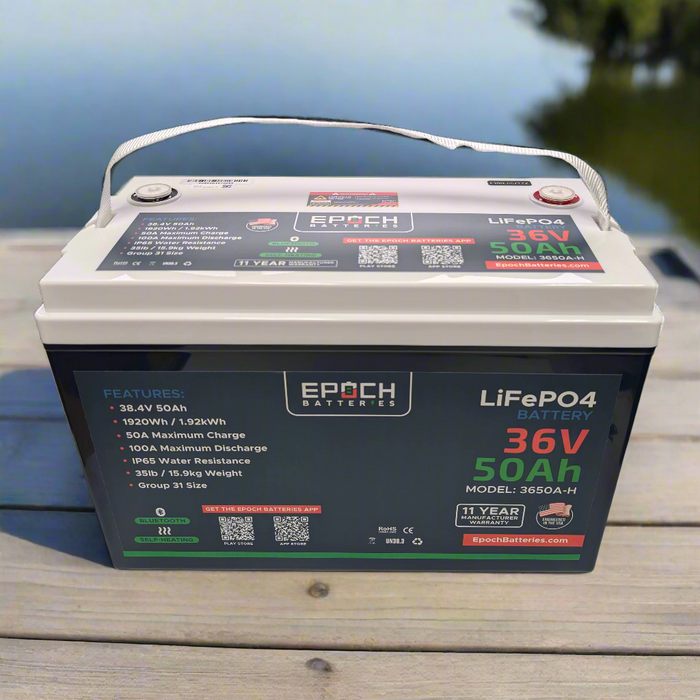

36V 50Ah Essential Series - Bluetooth & Heated LiFePO4 Battery
Original price
$989.53
-
Original price
$989.53
Original price
$989.53
$989.53
-
$989.53
Current price
$989.53
Description
- LiFePO4 Chemistry - Deep Cycle Battery
- HEATED - Internal heating allows for charging in sub-zero conditions
- BLUETOOTH - iOS and Android Apps
- IP54 Rated, Dust and WATERPROOF
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- 4000+ Cycle life & Maintenance-free
- 11 Year Manufacturer Warranty
Configuration
Cell Configuration: 12S
Chemistry: LiFePO4
Current
Ah Capacity: 50Ah
Max Continuous Discharge Amps: 100A
Max Charge Current Amps: 120A (10 Seconds)
Max Discharge Peak Current Amps: 130A (10 Seconds)
Series | Parallel: Max (1) in Series | Max (4) in Parallel
Voltage
Voltage: 36V
Max Charge Voltage: 43.8V
Operating Voltage Range: 30 - 43.8V
Temperature
Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)
Weight: 35 (LBS)
Length: 13.0 (inches)
Width: 6.8 (inches)
Height: 9.44 (inches)
CHARGING NOTICE
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
- Bulk/Absorption: 14.2V – 14.6V
- Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
- Float: 13.4V – 13.8V
- Equalization: 14.4V/ Disabled
- Temperature Compensation: 0/Disabled
- Charge Rate: 50% of the battery or battery bank capacity
- Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
- Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
- Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
