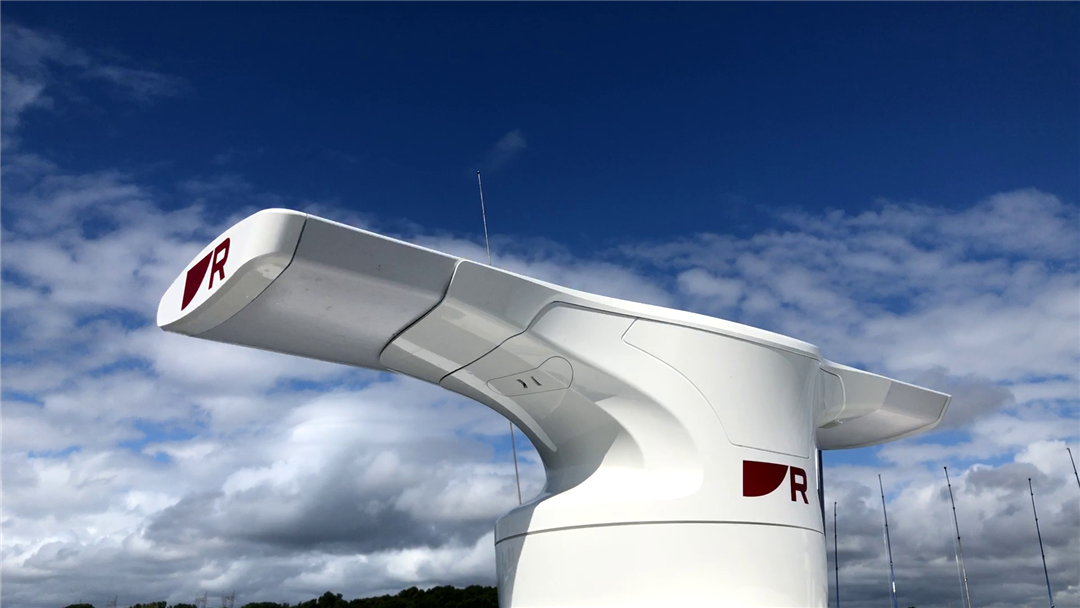

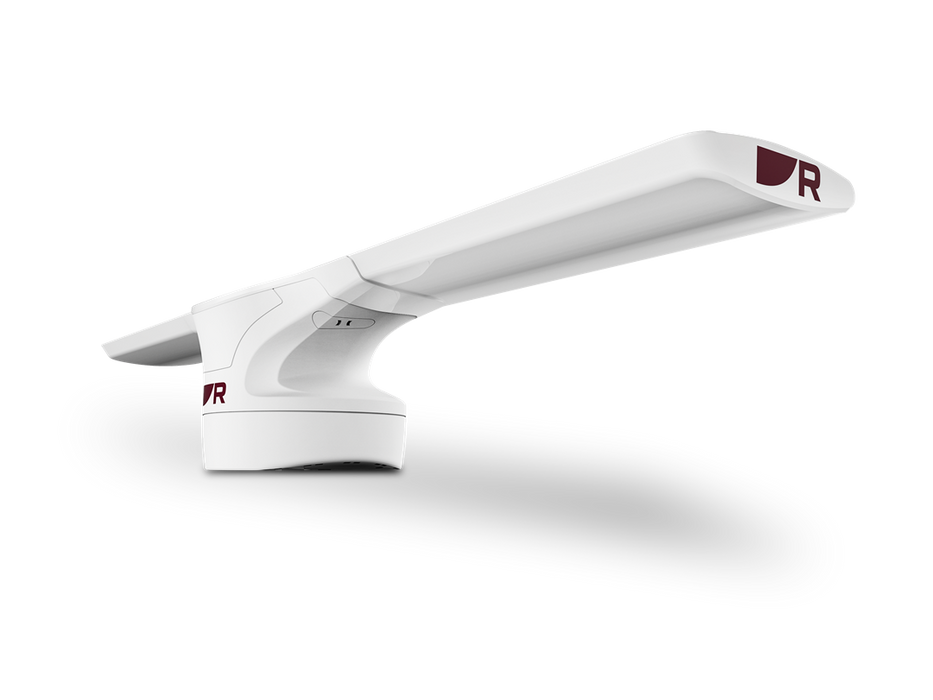

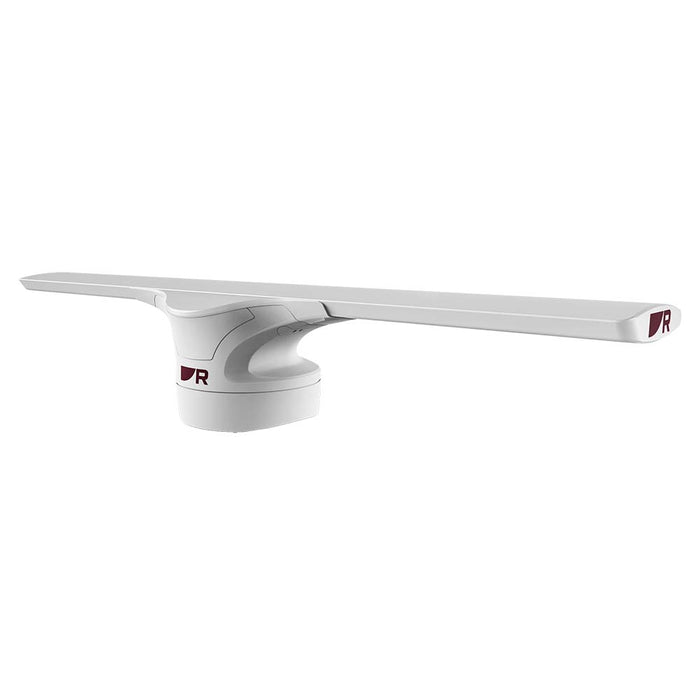

Raymarine Cyclone Pro Radar w/6' Open Array & 15M Cables
Raymarine Cyclone Pro 110W Radar with 6-Foot Open Array & 15M Cables
Experience unparalleled marine radar performance with the Raymarine Cyclone Pro T70496, featuring a powerful 110-watt solid-state transmitter and advanced CHIRP pulse compression technology. This professional-grade open array radar system delivers exceptional target separation, long-range detection up to 96 nautical miles, and the reliability that commercial mariners trust worldwide.
Professional-Grade CHIRP Pulse Compression Technology
The Cyclone Pro's 110-watt solid-state transmitter provides power output equivalent to a 12-kilowatt magnetron radar while delivering superior reliability and instant-on capability. Advanced CHIRP pulse compression and Raymarine's proprietary beam sharpening technology ensure exceptional target separation and long-range resolution in all conditions.

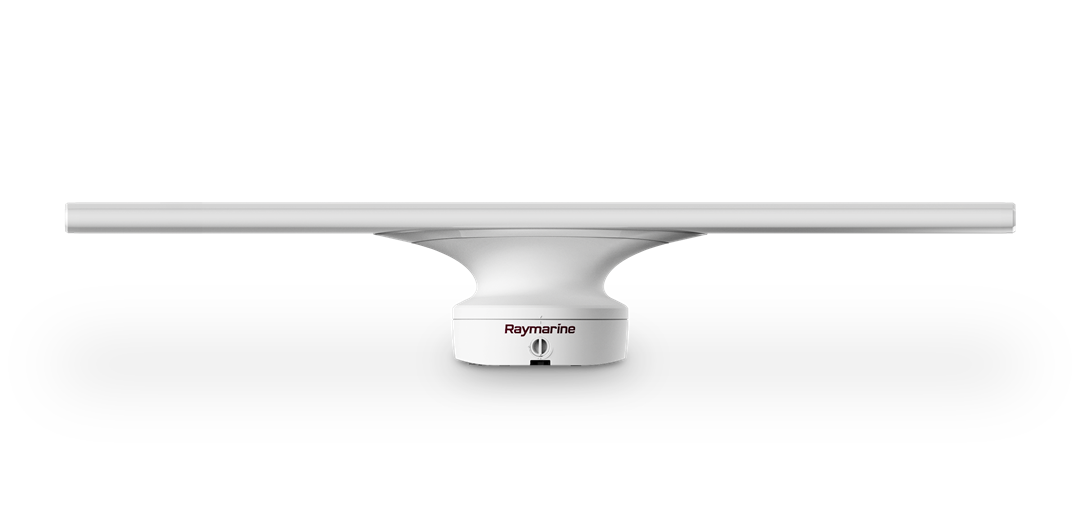

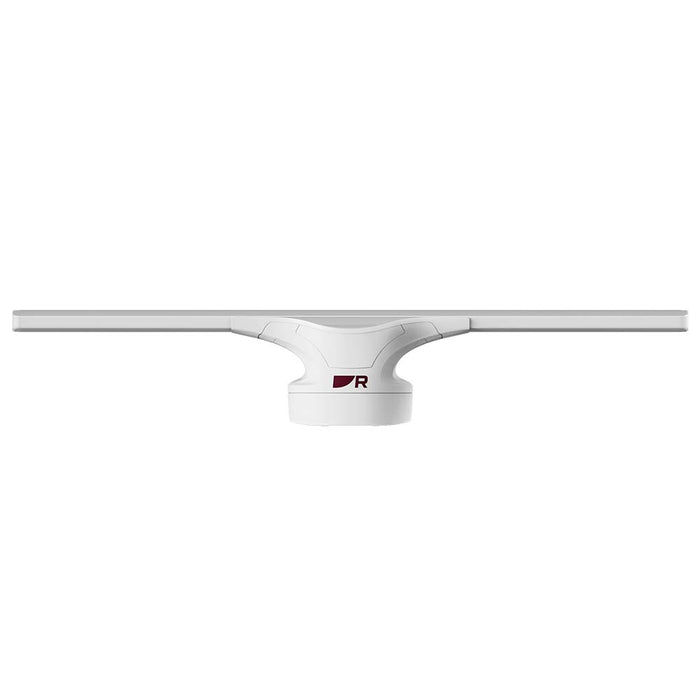

Superior 6-Foot Open Array Performance
The 6-foot open array antenna provides a narrow 1.32-degree horizontal beamwidth for precise target discrimination and superior range detection. With 25-degree vertical beamwidth coverage, the system maintains excellent performance in challenging sea conditions while delivering professional-grade target separation.
Advanced Detection Capabilities
- RangeFusion™ Technology: Combines short and long pulses into a single high-clarity radar image for simultaneous short-range and long-range target detection
- Doppler Target Tracking: Instantly identifies moving targets with color-coded display (red for inbound, green for outbound) for enhanced situational awareness
- Professional ARPA Tracking: Automatically tracks up to 50-100 targets using advanced ARPA technology trusted by the U.S. Coast Guard
- Cyclone Bird Mode: Enhanced bird detection using CHIRP pulse compression technology for fishing applications

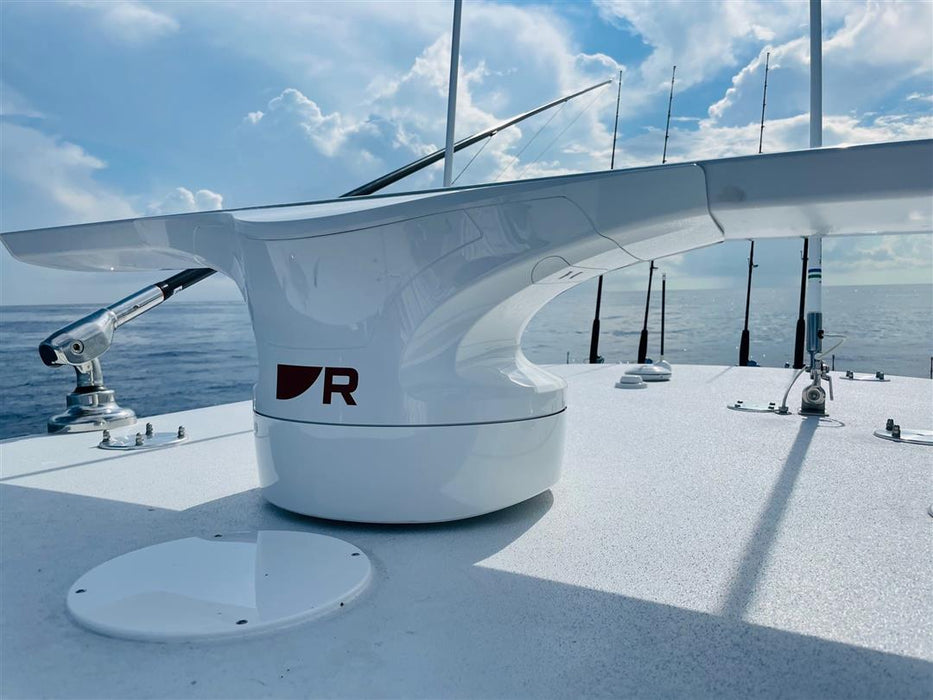

Commercial-Grade Engineering & Design
Inspired by aircraft wing aerodynamics, the Cyclone Pro's innovative design withstands extreme marine conditions with a best-in-class 100-knot wind rating. Meeting the commercial-grade IEC 62388 standard for shipborne radar, this system delivers professional reliability in demanding environments.

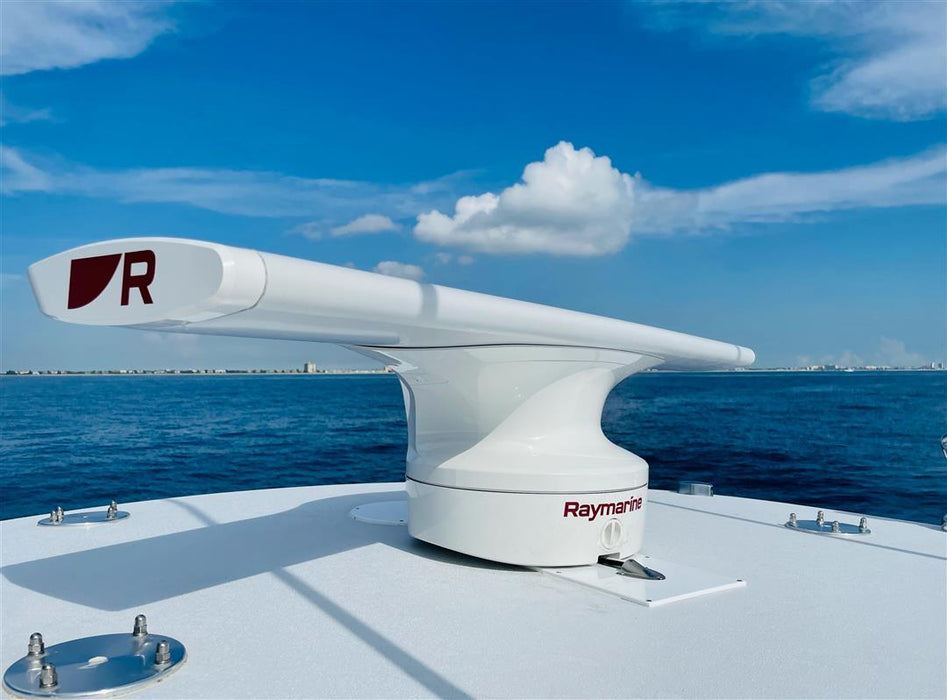

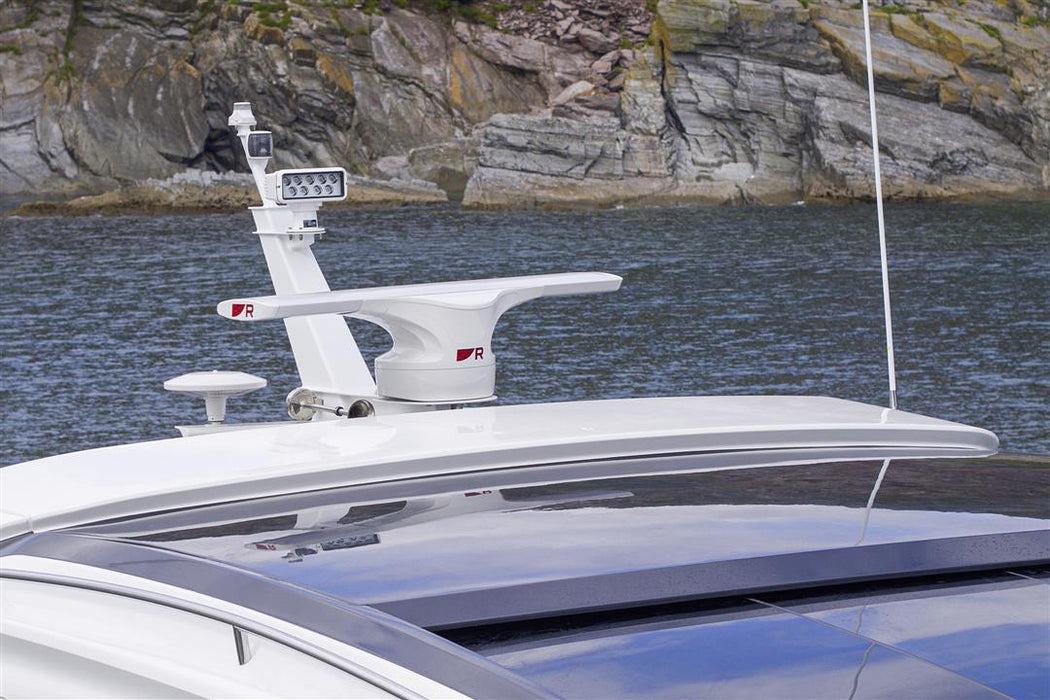

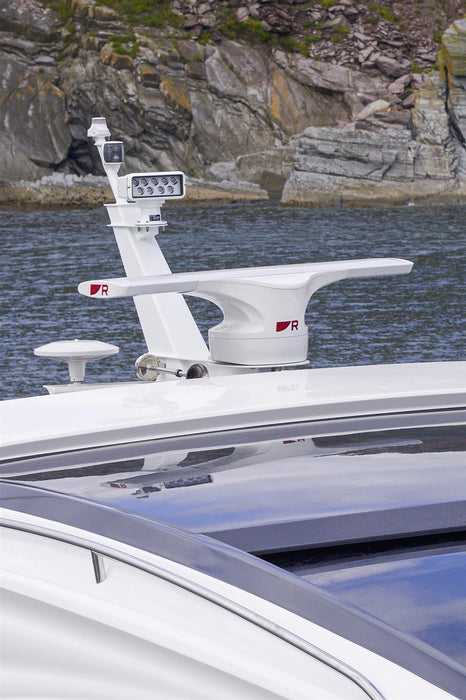

Optimized Installation Features
- Low Profile Design: At just 13.18 inches tall, provides flexible installation options and improved boat architecture compatibility
- Concealed Connections: Innovative pedestal design hides cable connections for clean, professional installation
- Complete Cable Package: Includes 15-meter power and data cables for streamlined installation
- IPX6 Waterproof Rating: Engineered for reliable operation in harsh marine environments
High-Speed Real-Time Performance
The Cyclone Pro's variable rotation speeds from 12 to 60 RPM deliver real-time situational awareness and accurate target tracking. Fast 60 RPM operation provides complete 360-degree coverage for critical navigation in busy waterways and challenging conditions.
Technical Specifications
Power & Performance
Antenna Performance
System Specifications

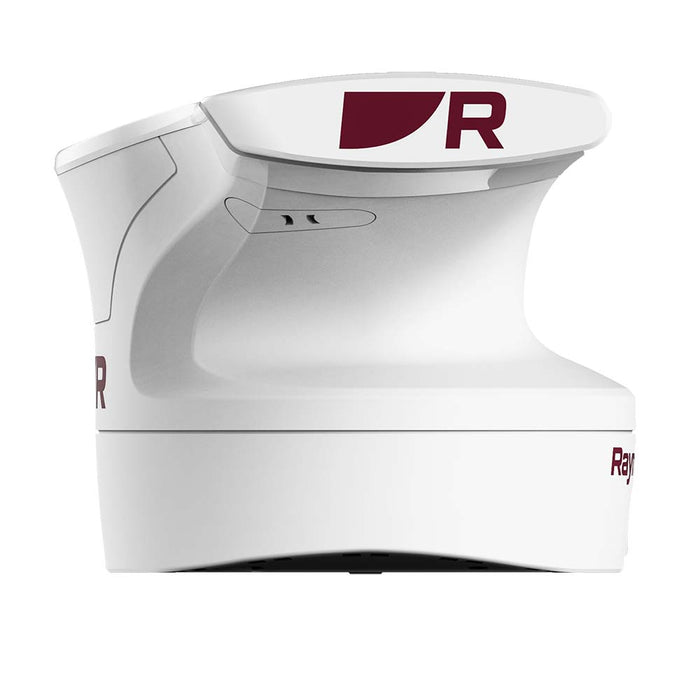

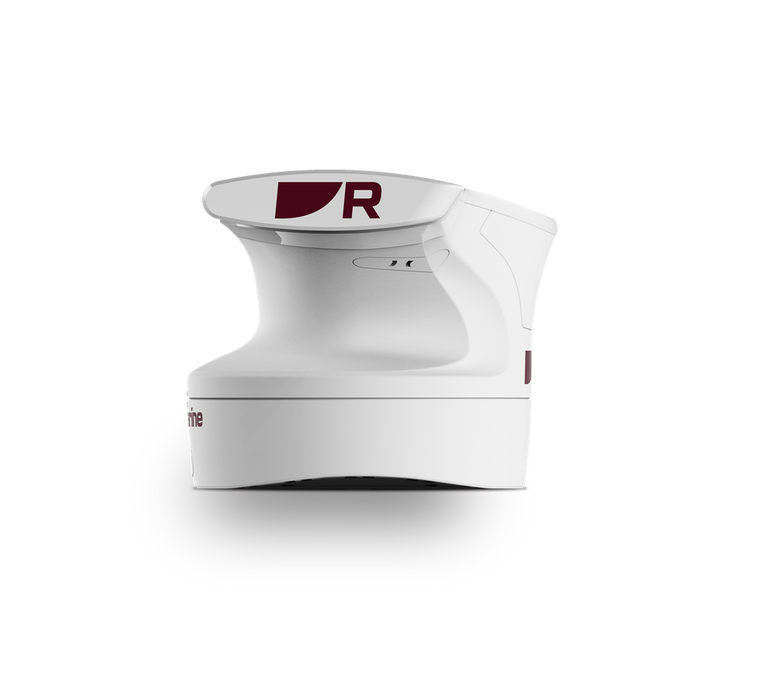

Pedestal Dimensions
Transmitter Specifications
Complete System Package
The T70496 includes everything needed for professional radar installation:
- E70621 110-watt Pro Pedestal with VCM100 voltage converter
- E70630 6-foot open array antenna
- A80653 15-meter power cable
- A80558 15-meter RayNet data cable
- Complete mounting hardware and installation template
- Cable clamps and mounting accessories
Professional Installation & Compatibility
The Cyclone Pro requires professional installation to ensure optimal performance and regulatory compliance. The system connects to compatible Raymarine multifunction displays via RayNet data connection and integrates seamlessly with existing navigation systems.
Display Compatibility
Compatible with Raymarine Axiom displays running LightHouse Hvar 3.16 software or later. Professional installation by certified marine electronics technicians ensures proper system integration and warranty compliance.
Marine Safety & Navigation Excellence
The Cyclone Pro's advanced ARPA capabilities provide critical collision avoidance information, automatically tracking and predicting the movement of up to 50-100 targets. This professional-grade functionality enhances safety in busy waterways and provides the situational awareness required for confident navigation in challenging conditions.
Warranty & Support
Backed by Raymarine's comprehensive 2-year limited warranty and worldwide service network, the Cyclone Pro provides long-term reliability and professional support for commercial and recreational applications.
Frequently Asked Questions
What is the advantage of CHIRP pulse compression technology in radar?
How does the 6-foot antenna improve radar performance?
What is RangeFusion™ technology and how does it work?
How many targets can the ARPA system track simultaneously?
What displays are compatible with the Cyclone Pro radar?
What is included in the complete T70496 package?
What is Doppler target tracking and how does it enhance safety?
With a powerful 110 Watt solid-state transmitter, Cyclone Pro delivers superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology. The increased power output of Cyclone Pro is equivalent to a 12 Kilo Watt magnetron radar and gives Cyclone Pro a range of up to 96 Nautical Miles. Cyclone Pro model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion ™ technology and high-speed 60 RPM imaging.
Raymarine T70496 Attributes
- Radar Type: Open Array
- Size: 6 Feet Array
- Range: 96 Nautical Miles
- Rotation Speed: 12 To 60 RPM
- Power Output: 110 Watt
- Dimension: 15.27 Inch Length x 14.17 Inch Width x 13.18 Inch Height
- Input Voltage: 12 Volt To 24 Volt
- Beam Width: 1.32 Degree Horizontal/ 25 Degree Vertical
- Color: White
- Waterproof Rating: IPX6 Rating Waterproof
- Includes: Radar Pedestal/ Voltage Convertor/ Power Cable/ Data Cable/ Mounting Kit
Raymarine T70496 Features & Benefits
- Aircraft Wing Inspired: Engineered For Extremes With Best-In-Class 100-Knot Wind Rating
- Cyclone's Lower Profile Allows Greater Flexibility Of Boat Architecture And More Adaptable Installation Options
- Cyclone Automatically Tracks Up To 50 Targets Using The Same Advanced Arpa Technology Trusted By The United States Coast Guard
- RangeFusion ™ Technology Combines Short And Long Pulses Into The Single High Clarity Radar Image, Delivering Exceptional Short-Range And Long-Range Targets Simultaneously
- Fast 60 RPM Rotational Speed Delivers 360 Degrees Of Awareness And Accurate Target Tracks In Real-Time
- Doppler Target Tracking Simplifies The Interpretation Of Dangerous And Safe Targets For Added Safety
- Innovative Pedestal Design Conceals Cable Connections For A Cleaner Installation
- Cyclone's 6 Feet Option Delivers Superior Target Separation And Range Detection
- Limited 2 Year Warranty
Raymarine T70496 Installation Instructions
Raymarine T70496 Warranties
Raymarine T70496 Technical Bulletins
- Cyclone Cyclone Pro Installation instructions 87402 (Rev 5) (EN).pdf
- 36in Open Array E70628 E70620 E70621 E70622 2D PDF.pdf
- 36in Open Array E70628 E70620 E70621 E70622 2D PDF.pdf

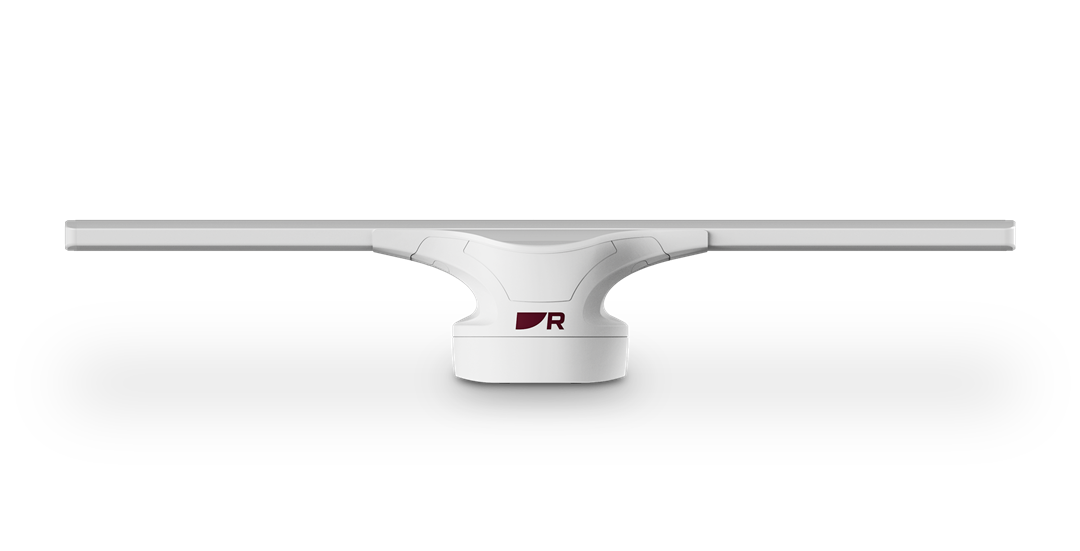

Cyclone Pro Radar 110W with 6' Open Array & 15M Cables
SOLID-STATE OPEN ARRAY RADAR
The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open-array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence.
Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology, and high-speed 60 rpm imaging.

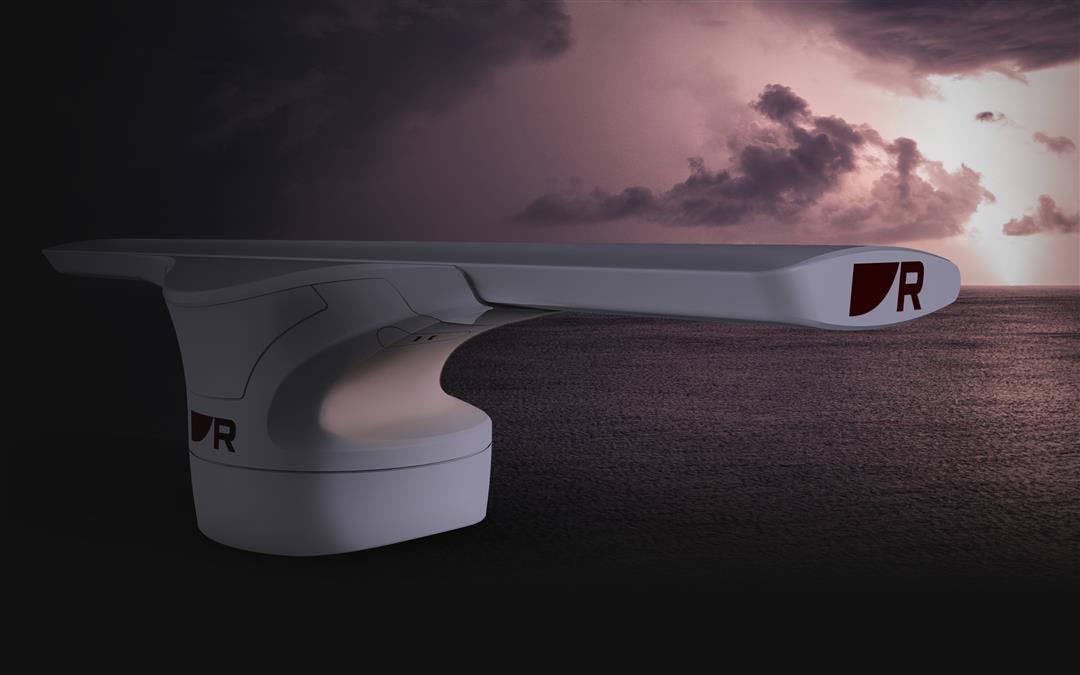

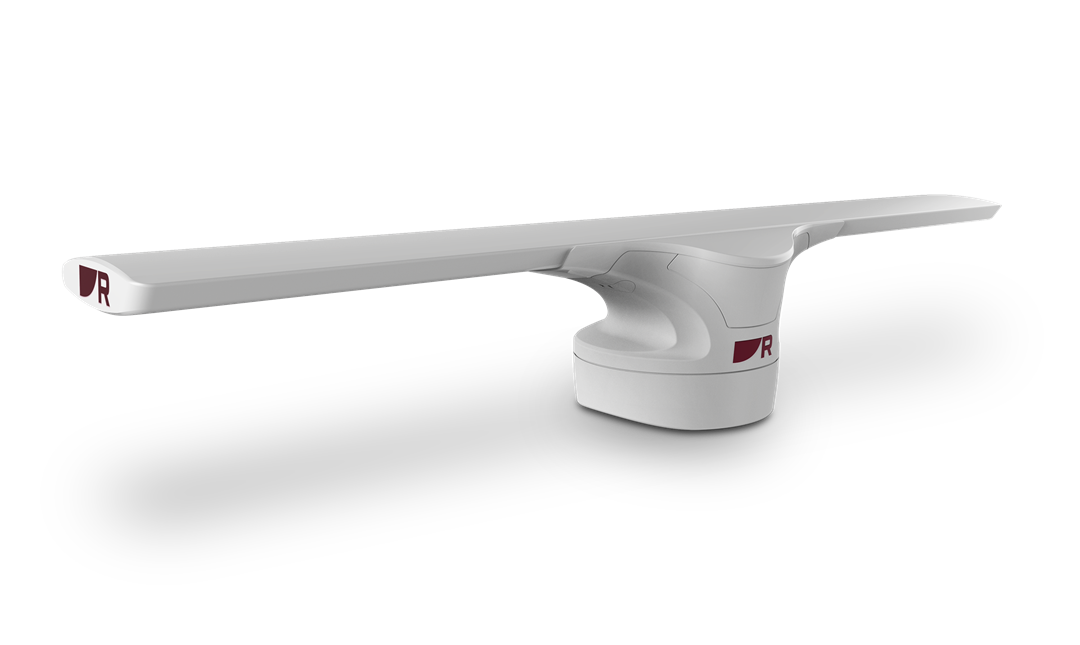

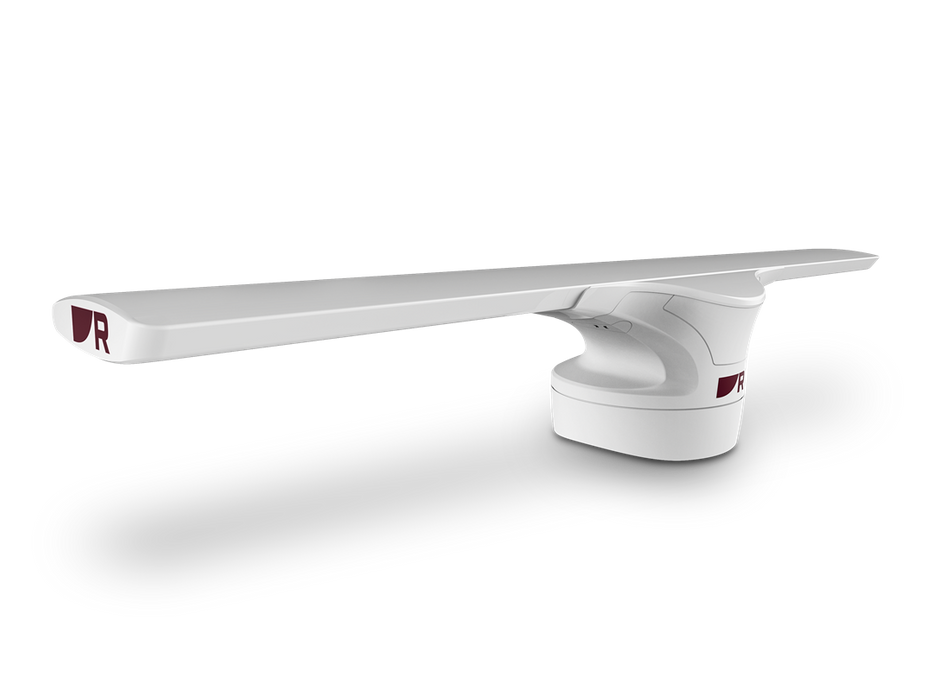

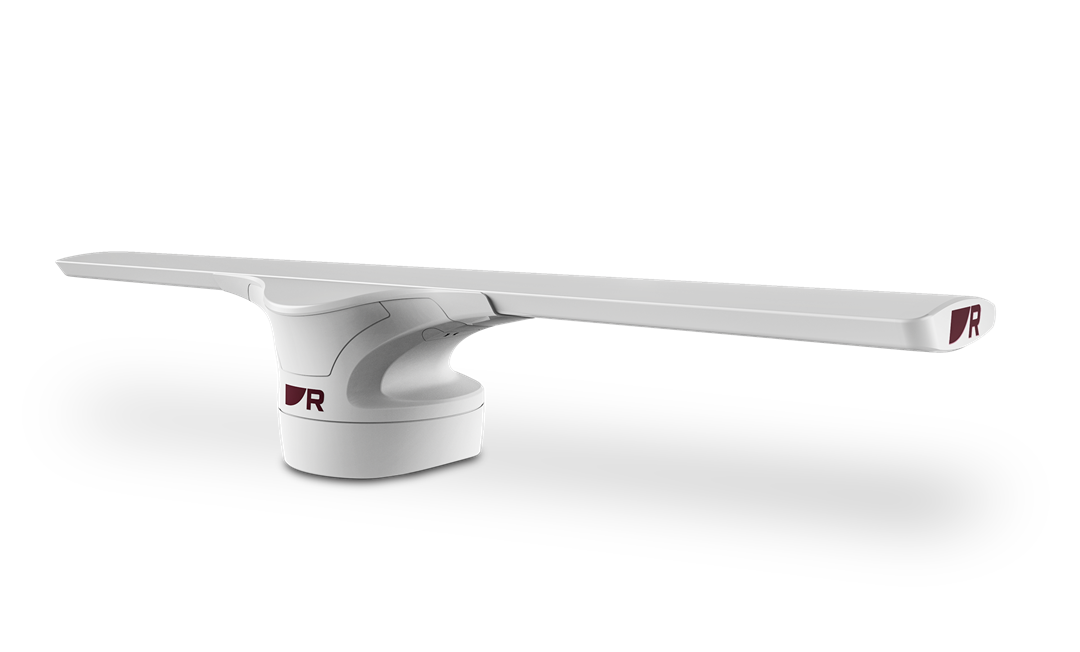

CUTTING EDGE DESIGN
- Aircraft-wing-inspired design is engineered for extremes with a best-in-class 100-knot wind rating and designed to meet the commercial-grade IEC 62388 standard for shipborne radar
- At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options.
- Innovative pedestal design conceals cable connections for a cleaner installation
THE ULTIMATE SITUATIONAL AWARENESS
- Fast 60 RPM rotational speed delivers 360 degrees of awareness and accurate target tracks in real-time
- Doppler target tracking simplifies the interpretation of dangerous and safe targets for added safety
- Professional grade ARPA target tracking. Cyclone automatically tracks up to 50 targets using the same advanced ARPA technology trusted by the United States Coast Guard.
- RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously.
FISHING INTELLIGENCE
- Performance tuned for locating sea birds
- Enhanced Cyclone Bird Mode using CHIRP pulse compression technology

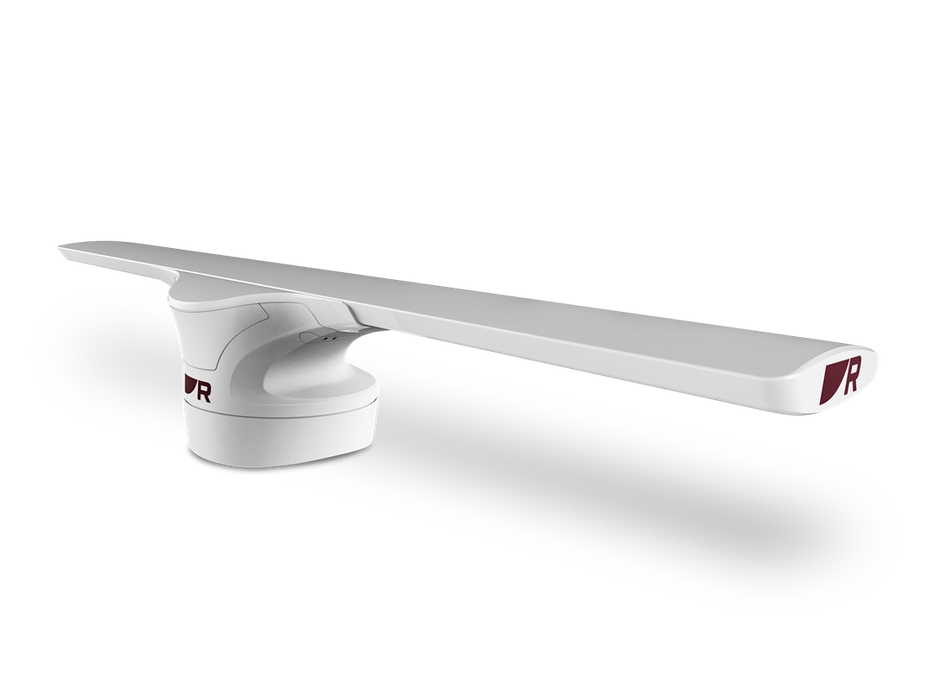

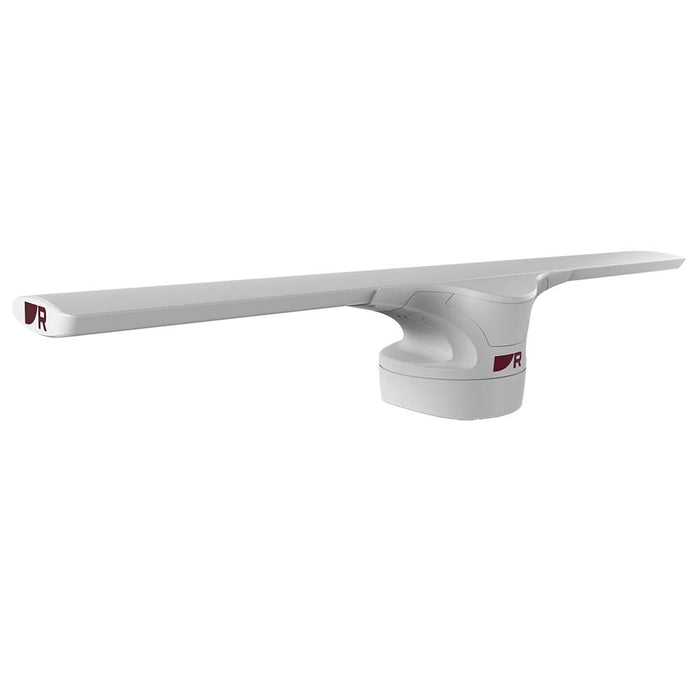

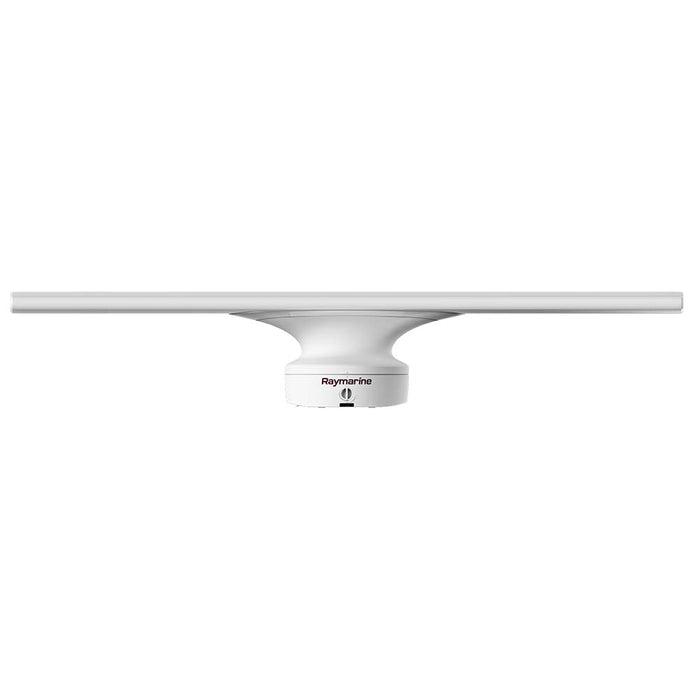

6' OPEN ARRAY SIZE
- 6' option delivers superior target separation and range detections

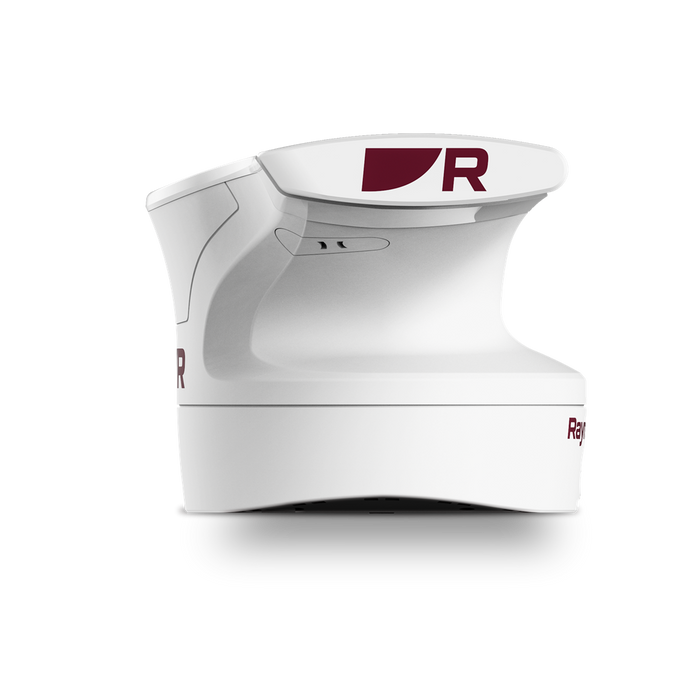

In the Pedestal Box E70621:
- Pro Pedestal
- M10 Stud x4
- M10 Nut x8
- M10 Spring Washer x4
- M10 Plain washer x4
- Mounting gasket
- Mounting template
- Radar data cable 15m
- Power cable 15m
- VCM100
- Cable clamp
- VCM100 mounting screw x2
- Cable clamp mounting screw x3
6' Antenna Box E70630: - Antenna
- Threaded alignment guide
- Washer
- Spring washer
- Nut
All Axiom displays require the forthcoming LightHouse Hvar 3.16 software update for complete Cyclone compatibility. LightHouse Hvar 3.16 will be available in early November 2021.
!!!!----
