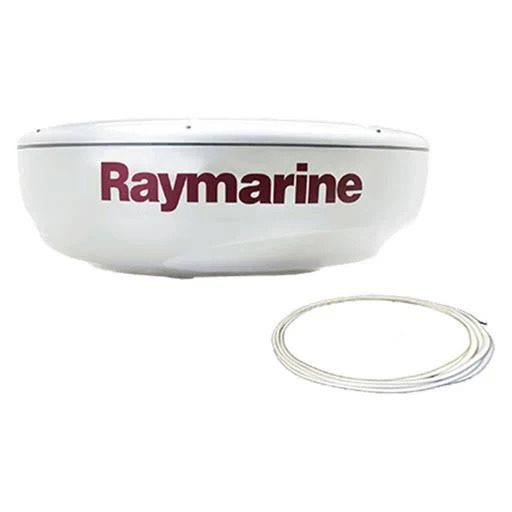

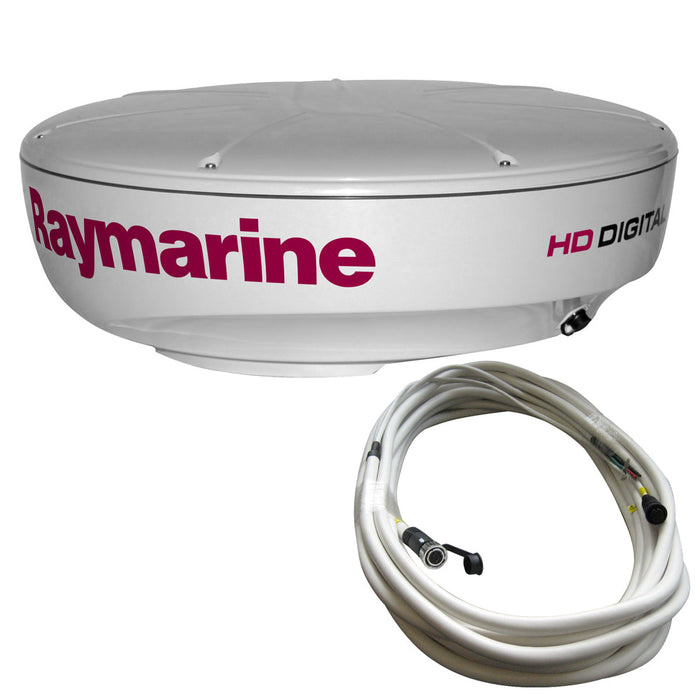

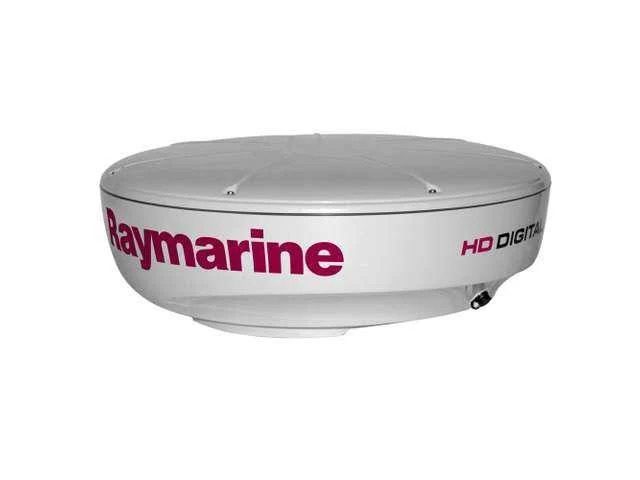

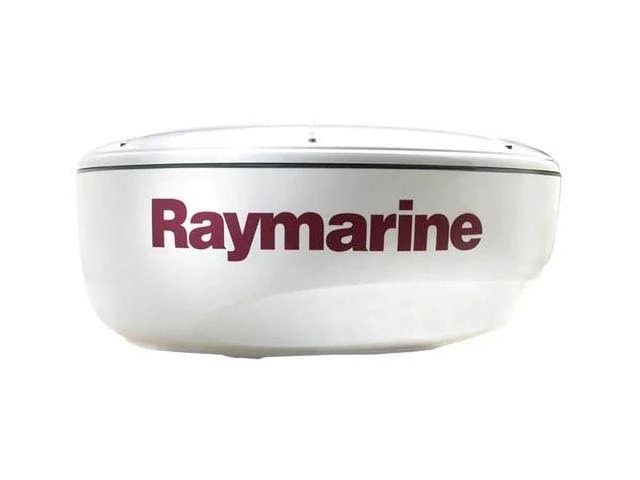

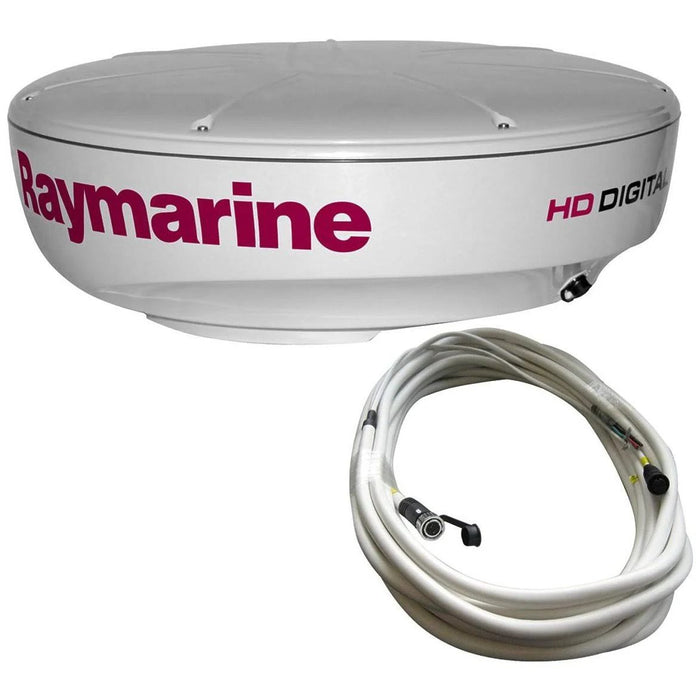

Raymarine RD418HD Hi-Def Digital Radar Dome w/10M Cable
Raymarine RD418HD Hi-Def Digital Radar Dome with 10M Cable
Professional HD Digital Radar with Advanced Signal Processing Technology
The Raymarine RD418HD delivers commercial-grade radar performance in an ultra-compact 18-inch radome perfect for boats of all sizes. Featuring revolutionary HD Digital signal processing technology and 4kW power output, this radar system provides crystal-clear target detection and exceptional weather penetration up to 48 nautical miles. The included 10-meter cable ensures plug-and-play compatibility with Raymarine's latest c-Series, e-Series, a-Series, and gS-Series multifunction displays via RayNet connection.
Advanced HD Digital Technology for Superior Target Detection
Revolutionary HD Digital Processing
Raymarine's HD Digital technology maximizes receiver performance, enabling this 4kW radar to deliver target detection capabilities that rival much larger analog radar systems through 100% digital signal processing and information extraction.
Adaptive Environmental Intelligence
The adaptive digital receiver automatically adjusts to changing sea conditions, weather patterns, and environmental factors, delivering crisp contact echoes and virtually eliminating clutter and noise for dramatically clearer radar pictures.
Dual-Range Monitoring Capability
Simultaneously monitor both long-range and short-range targets with a single scanner and display, providing comprehensive situational awareness for navigation safety and collision avoidance.
Professional Radar Specifications
Radar Performance
- Antenna Size: 18-inch HD Color radome scanner
- Power Output: 4kW high-performance transmission
- Maximum Range: 48 nautical miles detection capability
- Rotation Speed: 48 RPM high-speed target tracking
- Beamwidth: 4.9° horizontal, 25° vertical precision
Display & Interface Technology
- Color Resolution: 256-color multi-level target display
- Color Palettes: Selectable color schemes for optimal visibility
- Signal Processing: HD Digital receiver with adaptive technology
- Target Presentation: Lifelike, crisp contact echoes
- Range Resolution: Superior bearing and range accuracy
Connectivity & Power
- Interface: SeaTalk-HS (Ethernet) network compatible
- Connector: RayNet waterproof external connection
- Cable Length: 10-meter power and data cable included
- Voltage: 12 or 24 VDC operation
- Installation: No pedestal opening required
Intelligent Radar Features
Automatic Operating Modes
- Harbor Mode: Optimized for close-quarters navigation
- Coastal Mode: Enhanced performance for coastal cruising
- Offshore Mode: Maximum range and weather penetration
- Buoy Mode: Specialized detection for navigation aids
- Bird Mode: Automatically optimized for detecting seabirds above fish schools
Target Detection Technology
- Weak Contact Detection: Automatically identifies distant and faint targets
- Target Type Distinction: Differentiates between various contact types
- High-Speed Tracking: 48 RPM automatic tracking for fast-moving targets
- Weather Penetration: Effective operation through rain, fog, and high seas
- Clutter Elimination: Intelligent noise and interference suppression
Complete System Compatibility
Multifunction Display Integration
Designed for seamless plug-and-play compatibility with Raymarine's latest multifunction displays, the RD418HD integrates effortlessly into existing marine electronics systems via RayNet connectivity.
Compatible MFD Series
- c-Series: Complete integration with c-Series multifunction displays
- e-Series: Full compatibility with e-Series Classic and Widescreen
- a-Series: Seamless operation with a-Series widescreen displays
- gS-Series: Professional-grade integration with gS-Series systems
Complete System Package
- RD418HD Radar Dome (E92142): 18-inch HD Digital radar scanner
- 10M Cable (A80228): Power and data interconnect cable
- Installation Hardware: Mounting components and fasteners
- Documentation: Installation guide and user manual
Professional Installation Design
Simplified Installation Process
External waterproof connector eliminates the need to open the pedestal during installation, reducing complexity and maintaining weather integrity.
Universal Mounting Compatibility
Same mounting pattern as previous generation radomes ensures easy upgrades and replacement installations on existing radar mounts.
Compact Design Advantage
18-inch radome profile provides professional radar performance while maintaining low wind resistance and minimal impact on vessel aesthetics.
Professional Performance Benefits
Range and Resolution Capabilities
- Long Range Performance: Reliable detection up to 48 nautical miles
- Short Range Precision: Accurate contact echoes for close-quarters navigation
- Weather Penetration: Maintains performance through adverse conditions
- Target Clarity: Superior separation of targets from background clutter
Safety and Navigation Enhancement
- Collision Avoidance: Early warning of approaching vessels and obstacles
- Weather Awareness: Detection of approaching weather systems
- Navigation Confidence: Clear identification of buoys, landmarks, and hazards
- Night Operations: Enhanced safety during low-visibility conditions
Ideal Applications
Sport Fishing Boats
Professional-grade radar performance for offshore fishing expeditions and tournament competition
Cruising Yachts
Comprehensive navigation safety for coastal and offshore cruising adventures
Commercial Vessels
Reliable radar performance for charter operations and commercial marine activities
Professional Applications
Coast Guard, patrol, and rescue operations requiring dependable radar technology
Frequently Asked Questions
What makes HD Digital radar superior to traditional analog radar?
HD Digital radar uses 100% digital signal processing to deliver dramatically clearer target presentation, automatic clutter elimination, and adaptive environmental adjustment. This technology provides target detection capabilities that rival much larger analog radar systems while delivering crisp, accurate contact echoes.
Can the RD418HD operate effectively in severe weather conditions?
Yes, the adaptive digital receiver automatically adjusts to changing environmental conditions including rain, fog, and high seas. The powerful processor intelligently separates true contacts from weather noise and clutter, maintaining clear target detection even in challenging conditions.
Is professional installation required for the RD418HD?
While the external waterproof connector simplifies installation, professional installation is recommended to ensure proper radar calibration, safe electrical connections, and optimal antenna placement. The system uses the same mounting pattern as previous radomes for easy upgrades.
What is the effective detection range for small targets?
The 4kW power output and HD Digital processing provide exceptional target detection from close range out to 48 nautical miles. The adaptive receiver technology ensures crisp contact echoes for small targets at short ranges while maintaining outstanding long-range performance for larger vessels and land masses.
Does the radar include a warranty and what support is available?
The RD418HD includes Raymarine's limited 2-year global warranty covering manufacturing defects and component failures. Comprehensive technical support, documentation, and dealer service network ensure professional assistance throughout the product lifecycle.
Warranty & Professional Support
- Limited 2-Year Warranty: Comprehensive coverage for manufacturing defects
- Global Service Network: Worldwide dealer support and technical assistance
- Rugged Marine Construction: Built to withstand harsh marine environments
- Technical Documentation: Complete installation and operation manuals
18 Inch HD Digital Radome Scanner with 10M cable plug and Play Compatibility with New C and E Series MFDs using RayNet Connector Raymarine's HD Color radar utilizes powerful signal processing technologies that help: distinguish between target types, automatically detect weak and distant contacts, and virtually eliminate clutter and noise. The truly adaptive transmitter and receiver automatically adjusts to changing environmental and sea conditions. HD Color radar delivers a dramatically clearer radar picture with crisp, well-defined contact echoes and a life-like target presentation. 48 Nautical Mile range with 256 color resolution Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture Same mounting pattern as previous generation radomes 256 color multi-level target display with selectable color palettes SeaTalkHS network compatible Simple install, no need to open pedestal (external waterproof connector) Dual-range mode allow you to monitor both long and short ranges simultaneously with a single scanner and DisplayHD Color Radar technology maximizes digital radar receiver performance, enabling 4 Kilowatt Raymarine radars to deliver target detection that rivals much larger and more powerful analog radar systems Raymarine HD Color technology improves target detection by 100 Percent digital signal processing and information extractionHD Color and Super HD Color radar technology delivers substantial improvements in range and bearing resolution.
Raymarine T70168 Attributes
- Antenna Size: 18" HD Color Radome Scanner
- Interface: SeaTalk-hs (Ethernet)
- Voltage: 12 or 24 VDC
- Beamwidth: 4.9; horizontal, 25; vertical
Raymarine T70168 Features & Benefits
- Raymarine Keep You Aware Of Surrounding Traffic, Hazards And Obstacles, Approaching Weather And So Much More
- To Deliver Peak Performance No Matter Your Vessel Type, We Offer Radar In Both Radome And Open Array Configurations
- Built To Last Longer Life
- Rugged Design And Reliability
- Limited 2 Year Warranty
Raymarine T70168 Warranties
RD418HD w/10M Cable
Includes
- 10M Cable - A80228
- 18" HD Digital Radar Dome RD418HD - E92142
Raymarine's HD Digital radome scanners combine the power and clarity of HD Digital signal processing with an ultra-compact scanner suitable for all types of vessels. Compatible with a, c & e Series Multifunction displays these radomes offer a 256-color radar display and the clearest, most lifelike radar presentation available from any radome scanner. The RD418HD and RD424HD feature the same adaptive digital receiver technology found in our open array antennas. By adjusting automatically to changing environmental and sea conditions, the HD Digital radomes provide crisp, accurate contact echoes at short ranges, as well as outstanding long range performance up to 48 nautical miles. Rain, fog and high seas are no match for the HD Digital radome. Using it's powerful
processor the HD Digtal radome intelligently seperates true contacts from noise and clutter. The RD418HD and RD424HD offer small boat captains all of the same capabilities usually reserved for larger capacity boats.
FEATURES
- Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture
- New high speed (48rpm) target tracking
- Fast digital receiver processor
- 256 color multi-level display with selectable color palettes
- New Bird Mode automatically optimizes the receiver for detecting sea birds above schools of fish
- Automatic harbor, coastal, offshore and buoy operating modes
- Dual-range mode allows you to monitor both long and short ranges simultaneously with a single scanner and display
Raymarines RD418HD 18 HD digital radome is specially designed for small ships, with 256-color target display and digital signal processing functions, which can achieve excellent clarity and target clarity. Two-way scanning can provide detailed information about near and far, so you can always be ready for what is about to happen. The bird pattern indicates where the bait fish and the quarry are located. When cruising from one location to another, the high-speed 48 rpm mode provides the most accurate and up-to-date information. The 4kW transmitter can easily travel through fog, rain and spray, and the high-definition color processing can eliminate unnecessary confusion and optimize the target display. Compatible with all Raymarine a, c, e and gS series multifunctional displays. Includes 10m Raynet cable. Type: Sonar accessories. !!!!----
