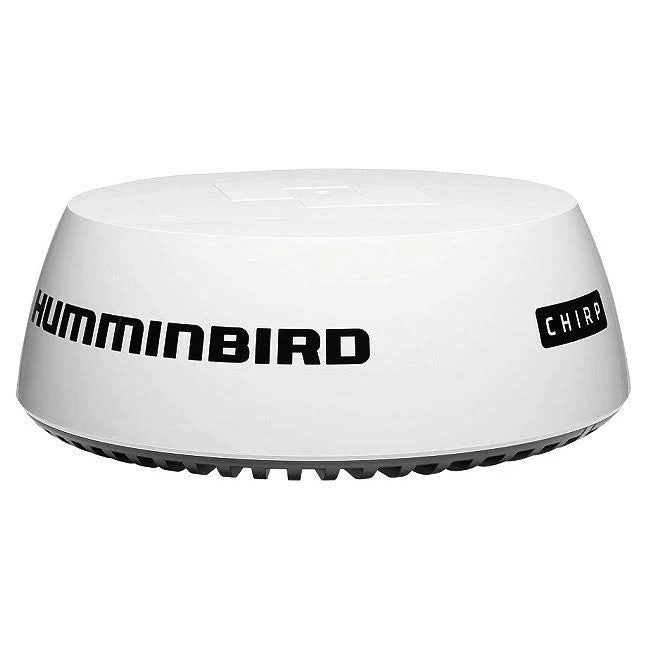

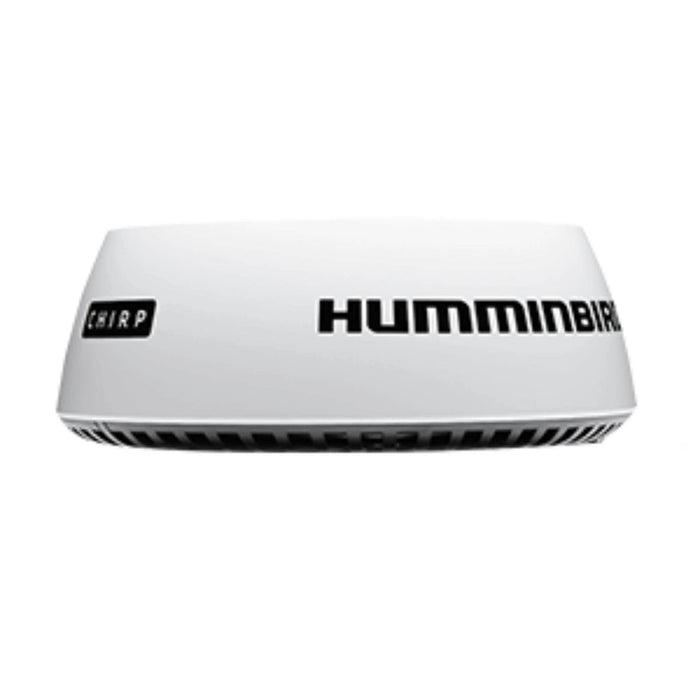

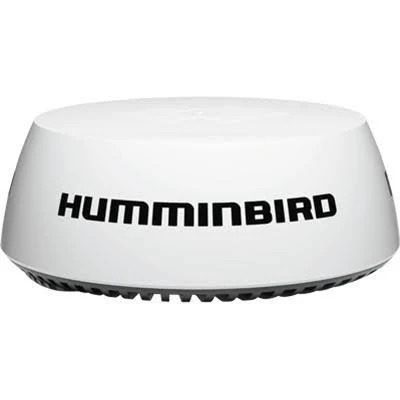

Humminbird HB2124 CHIRP Radar

The HB 2124 is our Humminbird CHIRP Radar that features CHIRP pulse compression, setting a new standard for compact solid-state radar. It delivers superior radar imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify floating obstacles and structures for clues to where gamefish are located. In addition, track weather, hazards and other vessels with amazing definition for navigational safety.

Humminbird 7500131 Attributes

• Radar Type: Radome
• Size: 21 Inch Dome
• Range: 0.06 Meters To 24 Nautical Miles
• Rotation Speed: 24 RPM
• Power Output: 20 Watt
• Input Voltage: 12/ 24 Volt DC
• Color: White
• Waterproof Rating: IPX6 Rating Waterproof

Humminbird 7500131 Features & Benefits

• Antenna Dimension: 21 Inch Enclosed Dome; Antenna Type: Patch Array
• Networking: Ethernet; Maximum Range Scale: From 1/16 To 24 Nautical Mile
• IF Bandwidth:26 Megahertz; Noise: Less Than 4 DB; Polarization: Horizontal
• Waterproofing:IPX6
• Limited 1 Year Warranty

Humminbird 7500131 Installation Instructions

• 532523-1EN_B CHIRP Radar Installation Manual.pdf
• 532547-1EN_A - HELIX CHIRP Radar Operations Manual.pdf

Humminbird 7500131 Warranties

• Humminbird 1-Year Limited Warranty.pdf

Humminbird 7500131 Technical Bulletins

• 532524-1_A CHIRP Radar Mounting Template.pdf

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

• Antenna Dimension - 21" Enclosed Dome

• Antenna Type - Patch Array

• Peak Power Output - 20W

• Transmit Frequency - 9354 to 9446 MHz

• Beam width (nominal) - 4.9° Horizontal and 20° Vertical

• Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)

• Networking - Ethernet

• Maximum Range Scale - from 1/16 to 24 nautical miles

• Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W

• Duplexer - Circulator

• Pulse Widths @ 3 dB - 40 ns to 14.7µs

• CHIRP Lengths - 400 ns to 20µs

• CHIRP Bandwidth - Up to 32 MHz

• IF Bandwidth - 26 MHz

• Noise - Less than 4 dB

• Polarization - Horizontal

• Waterproofing - IPX6

• Weight - 12.3 lbs (5.6 kg)

• Compatibility Networking HELIX models and all ONIX models

Humminbird CHIRP Radar is compatible with certain networked HELIX models and all SOLIX series models. It has CHIRP pulse compression, which sets a new standard for compact solid-state radars. It can provide excellent RADAR imaging at long distances and very short distances. This helps to better grasp the situation in low-visibility situations and helps identify birds and floating obstacles to find the location of the hunting fish. You can also track the weather and track ships with amazing clarity. !!!!----
