Raymarine Axiom 2 XL 16 - Premium 15.6" Marine Chartplotter with HydroTough Display

Ultimate Glass Bridge Navigation System for Professional Mariners

Experience the pinnacle of marine navigation with the Raymarine Axiom 2 XL 16 Multifunction Display - the flagship chartplotter that delivers uncompromising performance for captains who demand excellence. This premium 15.6-inch display combines lightning-fast 6-core processing power with revolutionary HydroTough™ nano-coating technology, ensuring crystal-clear visibility and reliable touchscreen control even in the harshest marine environments.

Designed as the cornerstone of professional glass bridge installations, the Axiom 2 XL 16 seamlessly integrates radar, sonar, autopilot, and video systems through the intuitive LightHouse 4 operating system. Whether navigating open ocean passages or maneuvering in tight anchorages, this advanced chartplotter provides the precision, reliability, and feature-rich functionality that serious mariners rely on.

Advanced Features & Marine Technology

Revolutionary HydroTough™ Display Technology

• Ultra-bright HydroTough™ nano-coating repels water droplets for uninterrupted touchscreen operation
• Automatic brightness adjustment with integrated ambient light sensor optimizes visibility in all lighting conditions
• Superior sunlight readability ensures clear chart visibility even under direct sunlight
• Slim bezel design maximizes screen real estate while minimizing helm footprint

Professional-Grade Performance

• Powerful 6-core processor delivers lightning-fast chart rendering and smooth pan/zoom operations
• 64 GB internal storage provides ample space for charts, waypoints, and navigation apps
• Integrated high-accuracy GPS/GNSS with Galileo constellation support for precise positioning
• LightHouse 4 operating system offers intuitive navigation and seamless system integration

Comprehensive Connectivity & Integration

• Three RayNet Ethernet PoE ports enable extensive networking with radar, sonar, and cameras
• NMEA 2000 compatibility integrates with engine data, autopilot, and vessel systems
• Dual HDMI ports (input/output) support remote displays and PC integration
• Dual-band Wi-Fi and Bluetooth 4.0 connectivity for mobile device integration
• Analog audio output connects to marine entertainment systems

Technical Specifications

Display Specifications

Screen Size:	15.6" diagonal
Display Technology:	HydroTough™ nano-coating with ambient light sensor
Dimensions (H×W×D):	248.2mm × 394.9mm × 174.95mm (9.77" × 15.55" × 6.89")
Weight:	5.9 kg (13 lbs)
Waterproof Rating:	IPX6/IPX7 - fully sealed against water ingress

Power & Environmental

Operating Voltage:	12V/24V DC (9.5V-32V DC range)
Power Consumption:	76.56W @ 12V / 71.53W @ 24V
Operating Temperature:	-25°C to +55°C (-13°F to 131°F)
Storage Temperature:	-30°C to +70°C (-22°F to 158°F)
Humidity Rating:	Up to 93% @ 40°C (104°F)

Connectivity Ports

Ethernet:	3x RayNet PoE (10/100/1000 Mbps)
NMEA 2000:	DeviceNet connector
Video:	HDMI in/out, 2x Composite BNC
Audio:	Left/Right RCA analog output
USB:	USB-A (touch input), USB-B (touch output), Micro-B accessory
Wireless:	Dual-band Wi-Fi 802.11b/g/n, Bluetooth 4.0

Installation & Compatibility

Mounting Options

The Axiom 2 XL 16 offers flexible installation options for various helm configurations:

• Flush mount capability for clean, integrated installations
• Surface mount option with included mounting hardware
• Same mounting footprint as previous Axiom XL models for easy upgrades
• Panel thickness compatibility: 6mm to 19mm (0.24" to 0.75")

System Integration

• Radar Integration: Compatible with Quantum 2 radomes and Cyclone open array systems
• Sonar Compatibility: Works with CP570 CHIRP sonar and RVM1600 RealVision MAX modules
• Thermal Imaging: FLIR thermal camera integration for night navigation
• Autopilot Ready: Seamless integration with Raymarine autopilot systems
• Engine Data: NMEA 2000 compatibility with modern marine engines

Professional Marine Applications

Commercial & Recreational Vessels

• Glass Bridge Installations: Create multi-display navigation centers
• Sport Fishing: Advanced sonar and radar integration for offshore fishing
• Sailing Applications: Layline overlays, preloaded polars, and race timing features
• Cruising Yachts: Comprehensive navigation and entertainment integration
• Commercial Vessels: Professional-grade reliability for working boats

Weather-Resistant Design

Engineered for all-weather marine environments, the Axiom 2 XL 16 delivers consistent performance whether installed in open cockpits or enclosed bridge stations. The robust construction and IPX6/IPX7 rating ensure reliable operation in spray, rain, and challenging sea conditions.

Complete Installation Package

What's Included

• Raymarine Axiom 2 XL 16 Multifunction Display (E70661)
• Mounting gasket tape for weatherproof seal
• Rear mounting bars (2) with M5x20 countersunk fixings
• Complete mounting hardware kit (bolts, washers, nuts, feet)
• Power/Video/Audio cable - 1.5m right-angled
• RayNet network cable - 2m female-to-female
• DeviceNet to SeaTalkng adapter cable - 1m
• Optional grounding connection hardware
• Installation documentation and user guides

Marine Safety & Compliance

The Axiom 2 XL 16 meets stringent marine electronics standards for safety and electromagnetic compatibility. Professional installation following ABYC and NMEA guidelines ensures optimal performance and system reliability. The integrated GPS/GNSS receiver provides accurate positioning data essential for safe navigation and emergency response.

Frequently Asked Questions

Is the Axiom 2 XL 16 compatible with existing Axiom XL mounting systems?

Yes, the Axiom 2 XL 16 uses the same mounting footprint as previous Axiom XL models, making it easy to upgrade existing installations without modification to helm cutouts or mounting hardware.

Can I connect multiple displays to create a glass bridge system?

Absolutely. The Axiom 2 XL 16 features three RayNet Ethernet PoE ports specifically designed for networking multiple displays, creating comprehensive glass bridge installations with synchronized navigation data.

What sonar modules are compatible with this chartplotter?

The Axiom 2 XL 16 supports various Raymarine sonar modules including the CP570 for deep water applications and the RVM1600 with RealVision MAX featuring SideVision, DownVision, and 3D fish finder capabilities.

How does the HydroTough display coating work?

HydroTough™ nano-coating technology creates a hydrophobic surface that repels water droplets, preventing water interference with touchscreen operation while maintaining excellent visibility and color clarity in direct sunlight.

What power requirements does the Axiom 2 XL 16 have?

The unit operates on 12V or 24V DC systems with a wide voltage range (9.5V-32V DC) and consumes approximately 76.56W at 12V or 71.53W at 24V. A 15A fuse rating is recommended for proper circuit protection.

Is professional installation required?

While technically proficient boat owners can install the unit, professional installation by NMEA-certified technicians is recommended to ensure proper integration with vessel systems, optimal performance, and warranty compliance.

Raymarine Quality Assurance

The Axiom 2 XL 16 represents Raymarine's commitment to marine electronics excellence, backed by comprehensive warranty coverage and worldwide technical support. As part of the flagship Axiom family, this chartplotter delivers the reliability and performance that marine professionals and serious recreational boaters demand for confident navigation in any conditions.

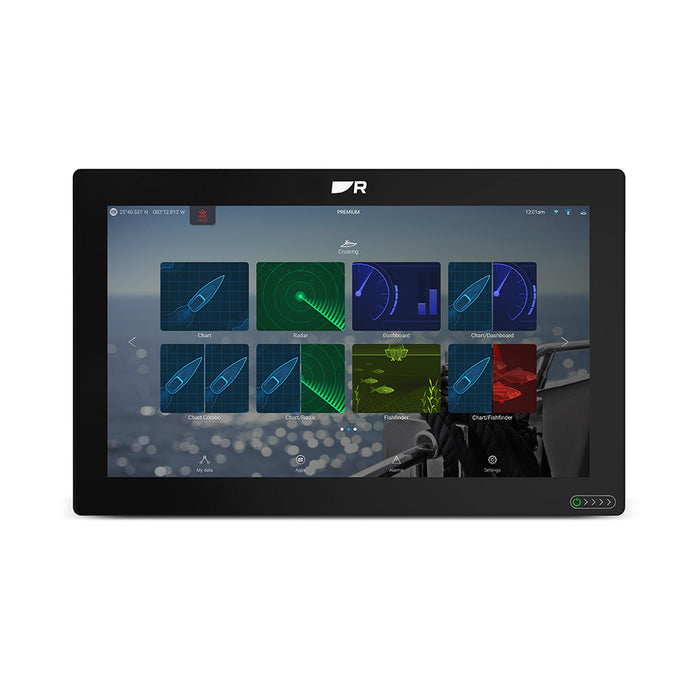

Axiom 2 XL 16 - 15.6" Multifunction Display

Axiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.

Features

• A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
• Get underway faster with a fast 6-core processor
• HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
• Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
• Create your own glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
• Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity
• Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems
• Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience
• HDMI output for connecting to remote monitors or HDTVs
• HDMI input and USB touchscreen input for remote PC integration
• Analog audio output for integrating with marine entertainment systems
• Easy to upgrade with the same mounting footprint as Axiom XL
• Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions
• Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules
• NMEA 2000 port
• Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation
• Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage

!!!!----
