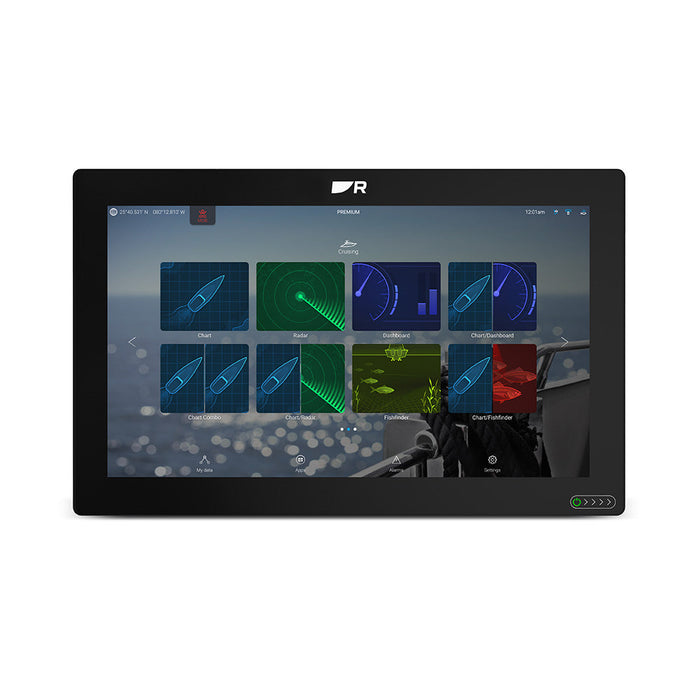

Raymarine Axiom 2 XL 16 - Premium 15.6" Glass Bridge Chartplotter with Complete Kit

Professional-grade multifunction display featuring 6-core processing power, HydroTough technology, and comprehensive networking capabilities - Model T70545

Overview

The Raymarine Axiom 2 XL 16 represents the pinnacle of marine navigation technology, delivering flagship chartplotter performance in a stunning 15.6-inch glass bridge display. This premium multifunction display combines powerful 6-core processing with the intuitive LightHouse 4 operating system, creating an unmatched navigation experience for serious mariners. The T70545 complete kit includes essential accessories including RCR-SD reader, alarm cable, and comprehensive installation hardware for immediate deployment.

Key Benefits

• Flagship Performance: 6-core processor delivers lightning-fast chart rendering, seamless multitasking, and instant response to navigation commands
• Maximum Visibility: Ultra-bright 1300 nit display with HydroTough nano-coating ensures crystal-clear visibility in direct sunlight and all weather conditions
• Complete Connectivity: Three Power-over-Ethernet RayNet ports, HDMI input/output, and wireless capabilities create a fully integrated glass bridge system
• Professional Integration: Seamlessly connects with Quantum radar, CHIRP sonar, autopilot systems, and marine cameras for comprehensive vessel management
• Weather-Proof Reliability: IPX6/IPX7 waterproof rating and rugged construction withstands harsh marine environments from open cockpits to enclosed bridge stations

Technical Specifications

Display Technology

Screen Size	15.6 inches diagonal
Resolution	1920 x 1080 pixels (Full HD)
Display Type	IPS with 24-bit color depth
Brightness	1300 nits ultra-bright
Viewing Angle	88 degrees in all directions
Surface Treatment	HydroTough nano-coating
Touch Control	Multi-touch capacitive with water rejection

Performance & Storage

Processor	6-core high-performance CPU
Internal Storage	64 GB for charts, apps, and waypoints
GPS/GNSS	Integrated high-accuracy receiver with Galileo support
Operating System	LightHouse 4

Power & Environmental

Operating Voltage	8V to 32V DC (12V/24V nominal)
Power Consumption (12V)	76.56W operating
Power Consumption (24V)	71.53W operating
Fuse Rating	15A
Operating Temperature	-25°C to +55°C (-13°F to 131°F)
Storage Temperature	-30°C to +70°C (-22°F to 158°F)
Relative Humidity	Up to 93% at 40°C (104°F)
Waterproof Rating	IPX6, IPX7

Physical Dimensions

Width	394.9 mm (15.55 in)
Height	248.22 mm (9.77 in)
Depth (with cables)	174.95 mm (6.89 in)
Weight	Approximately 5.9 kg (13 lbs)

Comprehensive Connectivity

Network Interfaces

• RayNet Ethernet (3 ports): Power-over-Ethernet capability for connecting radar, sonar modules, cameras, and additional displays
• NMEA 2000/SeaTalkNG: Complete engine data, sensor integration, and autopilot connectivity
• DeviceNet Port: Direct connection to marine electronics ecosystem

Video & Audio Integration

• HDMI Output: Connect to remote monitors or marine entertainment systems
• HDMI Input: Remote PC integration and external video source display
• Analog Audio Output: Marine entertainment system integration
• BNC Video Inputs (2): Camera and sensor video connectivity

Wireless Capabilities

• Dual-band Wi-Fi: Chart updates, mobile app connectivity, and system integration
• Bluetooth 4.0: Mobile device pairing and accessory connectivity
• Raymarine Mobile App: Remote control and monitoring via smartphone or tablet

Advanced Navigation Features

LightHouse Charts Integration

Created from official hydrographic charts, LightHouse Charts deliver maximum readability, intuitive navigation, and superior cartographic quality. Trust in accurate depth contours, hazard marking, and coastal detail for confident navigation.

Radar Integration

Compatible with Quantum 2 radome and Cyclone open array radar systems. Features advanced Doppler target tracking, radar/chart overlay, and collision avoidance capabilities for enhanced safety.

Sonar Compatibility

Seamlessly integrates with CHIRP sonar modules including the CP570 for deep water fishing and RVM1600 with RealVision MAX featuring SideVision, DownVision, and 3D fish finder technology.

Sailing Optimization

Comprehensive sailing features including layline overlays, preloaded polar diagrams, dedicated sailing dashboards, and race timer functionality for competitive sailing performance.

ClearCruise Augmented Reality

When paired with CAM300 camera and AR200 sensor, displays AIS targets, waypoints, and chart objects overlaid on live high-definition video for revolutionary situational awareness.

Complete T70545 Kit Contents

This comprehensive kit includes everything needed for professional installation:

Primary Components

• Axiom 2 XL 16 Multifunction Display
• RCR-SD Reader for chart and software updates
• Power/Video/Alarm cable (1.5m right-angled)
• DeviceNet to SeaTalkNG adapter cable (1m)
• RayNet network cable (2m)

Mounting Hardware

• Mounting gasket tape for weatherproof seal
• Rear mounting bars (2) with stainless steel fixings
• M5 mounting bolts, washers, and nuts
• Adjustable mounting feet (4)
• Optional grounding connection hardware
• Complete installation documentation

Installation & Compatibility

Mounting Requirements

The slim-bezel design maximizes screen real estate while minimizing helm space requirements. Compatible with standard marine display mounting systems and maintains the same footprint as previous Axiom XL models for easy upgrades.

System Integration

Seamlessly integrates with existing Raymarine systems and supports third-party NMEA 2000 compatible devices. Advanced engine integration available for Mercury SmartCraft and Yamaha Command Link systems.

Network Expansion

Create comprehensive glass bridge systems by networking multiple Axiom 2 XL displays. Each unit can serve as master or repeater in multi-station configurations.

Safety & Compliance

The Axiom 2 XL 16 meets stringent marine safety standards and regulatory requirements:

• CE Marking: European Conformity for electromagnetic compatibility
• FCC Certification: United States Federal Communications Commission approved
• NMEA Compatibility: Full NMEA 0183 and NMEA 2000 standard compliance
• IEC Standards: International marine electronics safety standards
• RoHS Compliant: Environmentally responsible materials and manufacturing

Ideal Applications

Sport Fishing Vessels

Large screen real estate perfect for displaying detailed sonar, chart, and radar information simultaneously. Integration with fish finder technology provides competitive advantage for serious anglers.

Yacht & Superyacht

Premium glass bridge aesthetics and professional-grade networking capabilities meet the demanding requirements of luxury yacht installations and commercial vessel operations.

Commercial Applications

Robust construction, extensive connectivity, and professional features support commercial fishing, charter operations, and workboat applications requiring reliable navigation systems.

Sailing Yachts

Specialized sailing features, wind data integration, and racing functionality provide comprehensive support for competitive and recreational sailing applications.

Maintenance & Support

Software Updates

Regular LightHouse operating system updates delivered via built-in Wi-Fi or RCR-SD reader ensure access to latest features, chart updates, and security enhancements.

Chart Compatibility

Supports comprehensive chart formats including LightHouse Charts, Navionics, C-MAP, and custom chart solutions for worldwide navigation coverage.

Technical Support

Backed by Raymarine's global service network with certified marine electronics technicians and comprehensive warranty coverage for peace of mind.

Frequently Asked Questions

Q: What's the difference between the Axiom 2 XL and standard Axiom series?

A: The Axiom 2 XL features a 6-core processor (vs 4-core), enhanced networking with three PoE ports, 64GB storage, ultra-bright 1300 nit display, and premium glass bridge design for professional installations.

Q: Can I upgrade from an existing Axiom XL to the Axiom 2 XL?

A: Yes, the Axiom 2 XL maintains the same mounting footprint as the previous Axiom XL series, allowing straightforward upgrade installation using existing mounting hardware.

Q: What radar systems are compatible with the Axiom 2 XL 16?

A: Compatible with Raymarine Quantum 2 radome, Cyclone open array radar, and Magnum open array systems. Advanced features include Doppler target tracking and ARPA functionality.

Q: How many sonar modules can be connected simultaneously?

A: The Axiom 2 XL can support multiple sonar modules through the three RayNet ports, including combinations of CHIRP sonar, RealVision MAX, and traditional fish finder modules.

Q: Is professional installation required?

A: While experienced DIY installers can complete the installation, professional installation by certified marine electronics technicians ensures optimal performance, proper networking configuration, and warranty compliance.

Q: What's included in the T70545 kit that differentiates it from other Axiom 2 XL packages?

A: The T70545 kit specifically includes the RCR-SD reader for chart updates, alarm cable for audio notifications, and comprehensive installation cables - providing everything needed for immediate deployment.

Professional Navigation Excellence

The Raymarine Axiom 2 XL 16 (T70545) delivers uncompromising navigation performance for mariners who demand professional-grade capabilities. Combining flagship processing power with premium display technology and comprehensive connectivity, this chartplotter represents the pinnacle of marine navigation systems. Whether upgrading an existing helm or creating a new glass bridge installation, the Axiom 2 XL 16 provides the advanced features, reliability, and integration capabilities required for confident navigation in any marine environment.

Axiom 2 XL 16 - 15.6" Multifunction Display with RCR-SD Reader, Alarm & Cable

Axiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.

Features

• A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
• Get underway faster with a fast 6-core processor
• HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
• Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
• Create your own glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
• Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity
• Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems
• Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience
• HDMI output for connecting to remote monitors or HDTVs
• HDMI input and USB touchscreen input for remote PC integration
• Analog audio output for integrating with marine entertainment systems
• Easy to upgrade with the same mounting footprint as Axiom XL
• Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions
• Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules
• NMEA 2000 port
• Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation
• Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage

!!!!----
