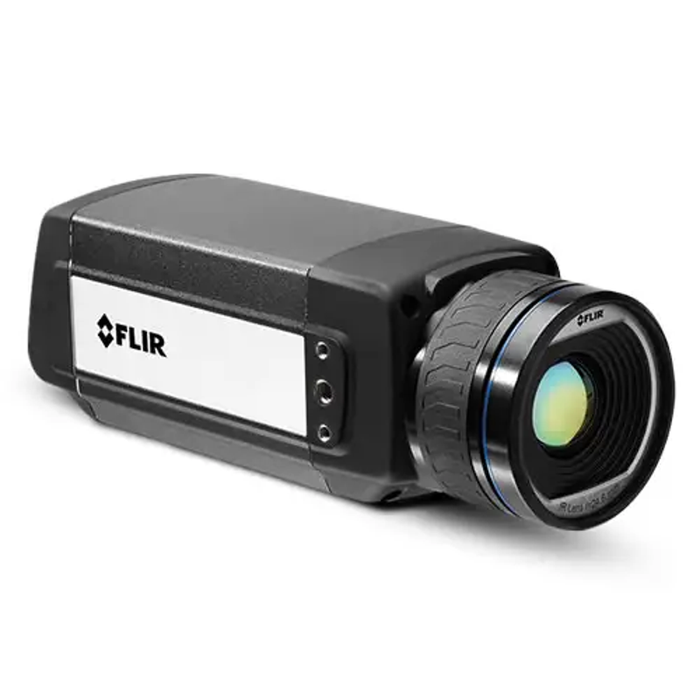

FLIR A655SC-FOV-7 High-Resolution Science Grade LWIR Camera Kit 7 FOV 640 x 480 50 Hz 200 Hz
The Teledyne FLIR A655SC-FOV-7 High-Resolution Science Grade LWIR Camera Kit with 7° Field of View offers outstanding performance for scientific and research applications. Equipped with a high-resolution 640 x 480 uncooled microbolometer detector, it accurately captures temperature variations with a sensitivity of less than 30 mK. This camera supports full-frame 16-bit data streaming at 50 Hz or high-speed windowed streaming at up to 200 Hz, ideal for monitoring fast thermal processes.
Designed for ease of integration, it uses GigE Vision to allow fast image transfer over cost-effective standard cables up to 100 meters. The A655SC-FOV-7 is a versatile, reliable thermal imaging solution capable of delivering detailed, real-time thermal analysis in challenging environments.
What's Included:
- 1 - A655sc High-Resolution Science Grade LWIR Camera Kit with 7° FOV, 640 x 480, 50 Hz/200 Hz
Features
High-Resolution Thermal Imaging
Features a 640 x 480 pixel uncooled microbolometer sensor for precise thermal detection at extended distances.
High-Speed Data Streaming
Streams full-frame 16-bit thermal data at 50 Hz and up to 200 Hz with windowing for monitoring fast-moving thermal events.
Advanced Connectivity
Utilizes GigE Vision technology for fast and reliable image transfer with affordable standard Ethernet cables up to 100 meters.
Flexible Temperature Measurement
Offers optional temperature measurement ranges up to 2000°C, allowing for extreme application versatility.
Motorized Focus Control
Allows automatic or manual adjustment to achieve precise focus across varying distances.
Robust Environmental Design
Built with an IP30 rating and durable mounting options to ensure reliability in laboratory or industrial environments.
Compact and Lightweight
Designed for easy integration into fixed setups and test systems without adding significant bulk.
What's Included
Included with Your Purchase:
- 1 - A655sc High-Resolution Science Grade LWIR Camera Kit with 7° FOV, 640 x 480, 50 Hz/200 Hz
Specifications
- Detector Type: Uncooled microbolometer
- Detector Resolution: 640 x 480
- NETD: <30 mK
- Dynamic Range: 16-bit
- Spectral Range: 7.5 - 14.0 µm
- Field of View: 7° x 5.3° (8.7° diagonal)
- Frame Rate (Full Window): 50 Hz
- Max Frame Rate (Windowed): 200 Hz (640 x 120)
- Focus: Automatic or manual (motorized)
- Digital Data Output: Gigabit Ethernet and USB
- Temperature Measurement Range: -40°C to 150°C / 100°C to 650°C (Optional up to 2000°C)
- Accuracy: ±2°C or ±2% of reading
- Operating Temperature Range: -15°C to 50°C (5°F to 122°F)
- Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
- Encapsulation Rating: IP30 (IEC 60529)
- Mounting: 1/4"-20 and 2 x M4 mounts on three sides
- Camera f-number: f/1.0
- Detector Pitch: 17 µm
- Time Constant: <8 ms
- Bump/Vibration: 25 g / 2 g (IEC 60068-2 standards)
- Power Requirements: 12/24 VDC, 24 W absolute max
FAQ
Q: What is the maximum frame rate of the FLIR A655SC-FOV-7?
A: It can achieve up to 200 Hz when using windowed streaming (640 x 120 resolution).
Q: How is the camera connected to a PC?
A: The camera uses Gigabit Ethernet or USB connections for fast and easy data streaming.
Q: What is the smallest thermal difference it can detect?
A: The A655SC-FOV-7 can detect temperature differences as small as less than 30 mK.
Q: Can this camera be used outdoors?
A: While it has an IP30 rating suitable for lab and indoor environments, it would require additional protection for outdoor use.
Q: Is there an option for motorized focusing?
A: Yes, the camera supports both automatic and manual motorized focus for precise imaging.
