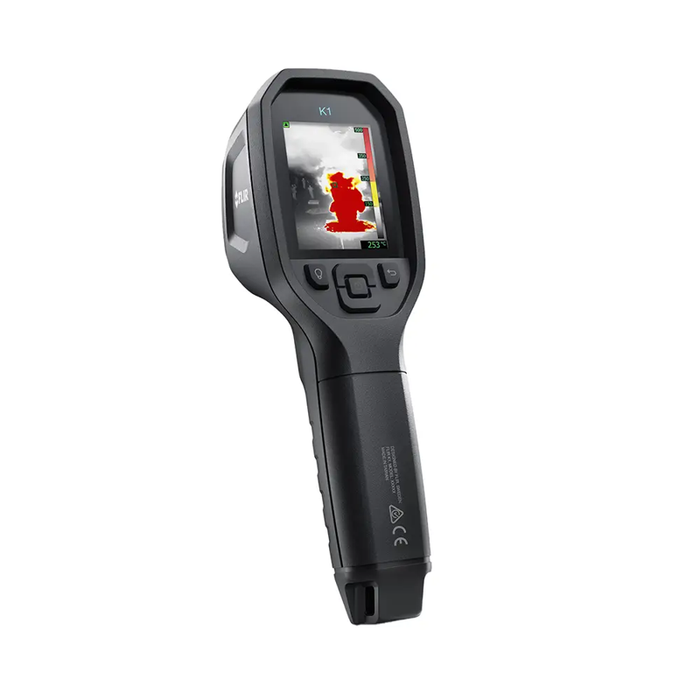

FLIR K1 Thermal Imaging Camera 160x120 9Hz for Situational Awareness
The Teledyne FLIR K1 Thermal Imaging Camera for Situational Awareness, 160 x 120, 9 Hz is a rugged, compact tool built to deliver accurate 360° assessments in total darkness or smoke-filled environments. Ideal for fire commanders, officers, and inspectors, it helps users make faster, more informed decisions in critical situations. With a pistol-grip design and integrated 300-lumen flashlight, the K1 enhances visibility and control while allowing one-handed operation for quick scanning and assessment.
Equipped with MSX (Multi-Spectral Dynamic Imaging) Technology, this camera overlays edge details from visible light onto thermal images for improved clarity and scene understanding. Its dual-image saving feature captures both radiometric infrared and visual photos, while large internal storage ensures up to 10,000 image sets can be saved on the device. Durable, water-resistant, and drop-tested, the FLIR K1 is built to withstand tough field conditions.
What's Included:
- 1 - Thermal Imaging Camera for Situational Awareness, 160 x 120, 9 Hz
- 1 - Wrist Strap Lanyard
- 1 - USB-C to USB-A Cable
- 1 - Tactical Pouch
- 1 - User Manual
Features
360° Scene Awareness
Quickly perform complete assessments even in total darkness or smoke-filled conditions.
MSX Image Enhancement
Combines visible-light edge detail with thermal imaging for greater clarity and improved recognition of objects and labels.
Pistol-Grip Design
Maintains line of sight and allows for comfortable, one-handed operation.
Wide Field of View
Portrait orientation with a 57° x 44° view helps you see from top to bottom easily.
Built-In Flashlight
Integrated 300-lumen flashlight improves visibility in dark environments.
Easy Image Capture
Simple point-and-shoot functionality for capturing scenes on the fly.
Dual Image Storage
Saves thermal and visual images simultaneously for easier post-review and documentation.
Ample Internal Memory
Stores up to 10,000 image sets for extended field use.
Durable and Portable
Compact, lightweight, water-resistant (IP67), and drop-tested from 2 meters.
Long Battery Life
Integrated rechargeable battery lasts up to 5.5 hours in MSX mode.
What's Included
Included with Your Purchase:
- 1 - Thermal Imaging Camera for Situational Awareness, 160 x 120, 9 Hz
- 1 - Wrist Strap Lanyard
- 1 - USB-C to USB-A Cable
- 1 - Tactical Pouch
- 1 - User Manual
Specifications
- IR Resolution: 160 x 120
- Image Frequency: 8.7 Hz
- Thermal Sensitivity (NETD): <100 mK
- Field of View (IR): 57° x 44°
- Focal Plane Array: Uncooled microbolometer, 8 - 13 μm
- Pixel Pitch: 12 μm
- Focus: Fixed
- Visual Camera Resolution: 2 MP
- Visual Camera FOV: 71° x 56°, adapts to IR lens
- Operating Temperature: -10°C to 45°C (14°F to 113°F)
- Battery Type: Li-ion, 3.7 V rechargeable
- Battery Life: 5.5 h (MSX mode), 3.8 h (Flashlight only)
- Drop Test: 2 meters (6 ft)
- Water Resistance: IP67
- Catalog No.: 88701-0101
- UPC: 845188019563
FAQ
Q: Can the FLIR K1 operate in total darkness?
A: Yes, the thermal imaging and integrated flashlight allow full use in complete darkness.
Q: What is MSX technology?
A: MSX overlays visible-light detail onto thermal images for better definition and scene context.
Q: How many images can it store?
A: The internal memory can hold up to 10,000 image sets.
Q: Is this unit water-resistant?
A: Yes, the K1 has an IP67 rating and can withstand a 2-meter drop.
Q: How long does the battery last?
A: Up to 5.5 hours in MSX mode and 3.8 hours with flashlight only.
