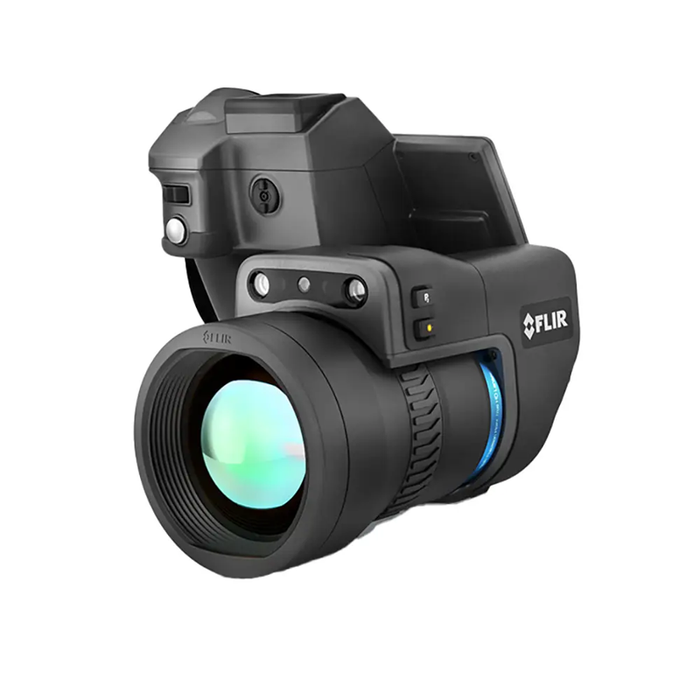

FLIR T1020 HD Thermal Imaging Camera with Viewfinder, MSX and UltraMax Technologies, 1024 x 768, 30 Hz, FLIR Tools+
Experience unparalleled precision and clarity with this professional-grade high-definition thermal imaging camera, engineered with over five decades of infrared expertise. It features a 1024 x 768 infrared detector that delivers 786,432 pixels, capturing exceptionally detailed thermal images essential for accurate analysis in electrical, mechanical, and industrial inspections. MSX (Multi-Spectral Dynamic Imaging) technology overlays visible light edge detail onto thermal imagery, making problem areas easier to identify. UltraMax image enhancement technology combines multiple frames to enhance resolution up to 3.14 megapixels, improving image clarity, reducing noise, and increasing spot-size measurement precision.
Designed for ergonomic versatility, it includes a high-resolution 800 x 480 pixel viewfinder for bright environments and a rotating optical block with dynamic continuous autofocus—ideal for accessing hard-to-reach inspection areas. The included OSX HDIR lenses are available in 12°, 28°, and 45° fields of view, adaptable to various inspection needs. With a wide temperature range from -40°C to 2000°C and accuracy of ±1°C or ±1% at 25°C, the camera supports demanding industrial, electrical, and research applications. Smart temperature alarms, up to 10 spotmeters, and 10 configurable area measurements allow thorough and intelligent diagnostics.
Capture full-frame radiometric video for detailed post-analysis and perform thermal monitoring with infrared time-lapse intervals from 15 seconds to 24 hours. Integrated GPS and compass enable precise image geolocation, while METERLiNK syncs wirelessly with compatible sensors for enriched reporting. The intuitive interface includes 1-Touch Level/Span controls and resizable picture-in-picture (PIP) options for enhanced workflow. FLIR Tools+ software is included to provide detailed reporting, robust analytics, and professional documentation tools.
What's Included:
- Thermal Camera Body with High-Resolution Viewfinder
- Choice of 12°, 28°, and/or 45° Precision HDIR Lens
- Rechargeable Battery and Charger
- Rugged Carrying Case
- FLIR Tools+ Software
- User Documentation
- NIST Certificate (with select models)
Features
High-Resolution Thermal Imaging
1024 x 768 infrared detector captures 786,432 pixels for superior detail in thermal diagnostics.
MSX Image Enhancement
Multi-spectral imaging overlays visible light edges onto thermal images for clearer, more informative visuals.
UltraMax Technology
Combines multiple frames to increase resolution up to 3.14 megapixels, improving clarity and accuracy.
Ergonomic Rotating Optical Block
Provides flexibility for inspecting difficult-to-access areas while maintaining comfort and precision.
Field-Ready HDIR Lenses
Available in 12°, 28°, and 45° for versatile applications across different inspection distances.
Broad Temperature Measurement Range
Measures from -40°C to 2000°C with high accuracy of ±1°C or ±1% at 25°C.

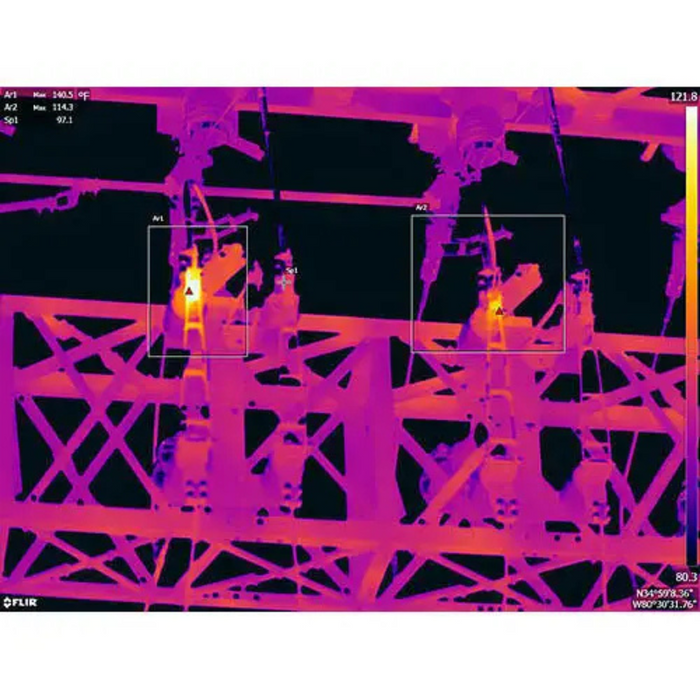

Advanced Analysis Tools
Includes 10 spotmeters, 5 area boxes, and 5 circles with smart alarms for thermal thresholds and moisture levels.
Radiometric Video and Time-Lapse
Enables detailed thermal video recording and monitoring over extended time periods.
Integrated GPS and Compass
Automatically tags images with geographic location and orientation data for better reporting.
Wireless METERLiNK Connectivity
Synchronizes data from compatible sensors to enhance inspection results.
User-Friendly Interface
Features quick-access controls like 1-Touch Level/Span and resizable PIP modes for efficiency.
Comprehensive Software Suite
Includes FLIR Tools+ for professional analysis, reporting, and data management.
What's Included
Included with Your Purchase:
- Thermal Camera Body with High-Resolution Viewfinder
- Choice of 12°, 28°, and/or 45° Precision HDIR Lens
- Rechargeable Battery and Charger
- Rugged Carrying Case
- FLIR Tools+ Software
- User Documentation
- NIST Certificate (with select models)
Specifications
- Infrared Resolution: 1024 x 768 (786,432 pixels)
- Lens Options: 12°, 28°, 45° HDIR Interchangeable Lenses
- Temperature Range: -40°C to 2000°C
- Temperature Accuracy: ±1°C or ±1% at 25°C
- Display: Integrated 800 x 480 Viewfinder
- Image Enhancement: MSX and UltraMax Technology
- Measurement Tools: 10 Spotmeters, 5 Boxes, 5 Circles
- Video Capabilities: Full Radiometric Video + Time-Lapse (15s to 24h)
- GPS/Compass: Integrated for Auto Geotagging
- Software: FLIR Tools+ Included
- Connectivity: METERLiNK Wireless Sensor Sync
FAQ
Q: What are the available lens options?
A: The camera supports 12°, 28°, and 45° HDIR lenses to accommodate various inspection distances and fields of view.
Q: Do all models come with a NIST Certificate?
A: Only specific variants include a NIST Certificate. Be sure to choose a model labeled with “NIST” in the variant name.
Q: What is MSX technology?
A: MSX overlays visual details from a built-in camera onto the thermal image, enhancing clarity and context.
Q: Can I record thermal videos for later analysis?
A: Yes, the camera captures full-frame radiometric video and offers infrared time-lapse features.
Q: Is the software included?
A: Yes, FLIR Tools+ is included for comprehensive reporting, thermal analysis, and documentation.
