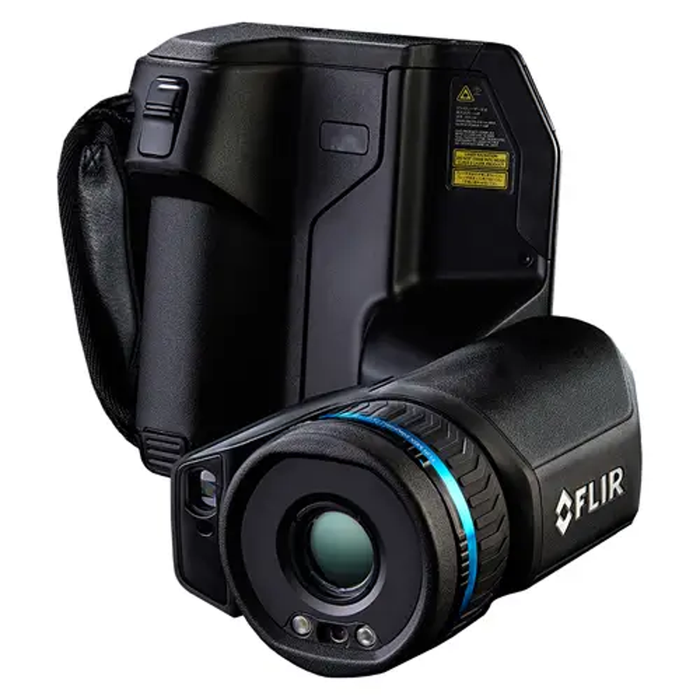

FLIR T530 Thermal Imaging Camera with NIST Certificate MSX UltraMax 42 Lens 320 x 240 -4 to 1202F 30 Hz
The Teledyne FLIR T530-42-NIST Thermal Imaging Camera is purpose-built for professionals performing critical inspections in power generation, electrical distribution, and manufacturing. This advanced camera combines a 320 x 240 infrared resolution with a 42° lens to capture wide fields of view while maintaining precise detail, making it ideal for scanning expansive components from safe distances.
Its ergonomic design features a 180° rotating optical block, enabling users to capture images of overhead or hard-to-access equipment with less physical strain. FLIR Vision Processing™, incorporating MSX® and UltraMax® technologies, delivers exceptional image clarity and sharper detail, enhancing inspection accuracy. The integrated laser-assisted autofocus ensures crisp imagery every time, while the on-screen laser distance measurement provides quick access to spatial data, improving diagnostic efficiency.
Optimized for real-world fieldwork, the T530-42-NIST boasts intuitive touchscreen controls, customizable work folders, and voice/text annotation tools for streamlined documentation. Paired with the NIST-traceable calibration, this camera guarantees precision and compliance, backed by a rigorous 12-point inspection and calibration program.

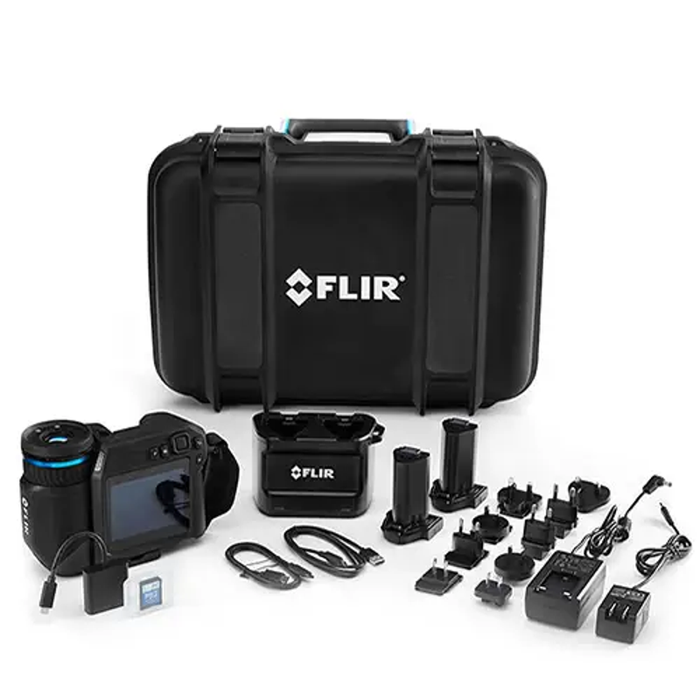

What's Included:
- Teledyne FLIR T530 Thermal Imaging Camera
- 42° AutoCal Lens
- NIST Calibration Certificate
- Battery
- Battery Charger
- USB Cable
- Hard Carrying Case
- Documentation
Features
High-Resolution Wide-Angle Imaging
320 x 240 resolution with a 42° lens captures detailed thermal data across a broad field of view.
Extended Temperature Range
Measures from -4 to 1202°F, ideal for electrical and mechanical diagnostics (requires optional upgrade for upper range).

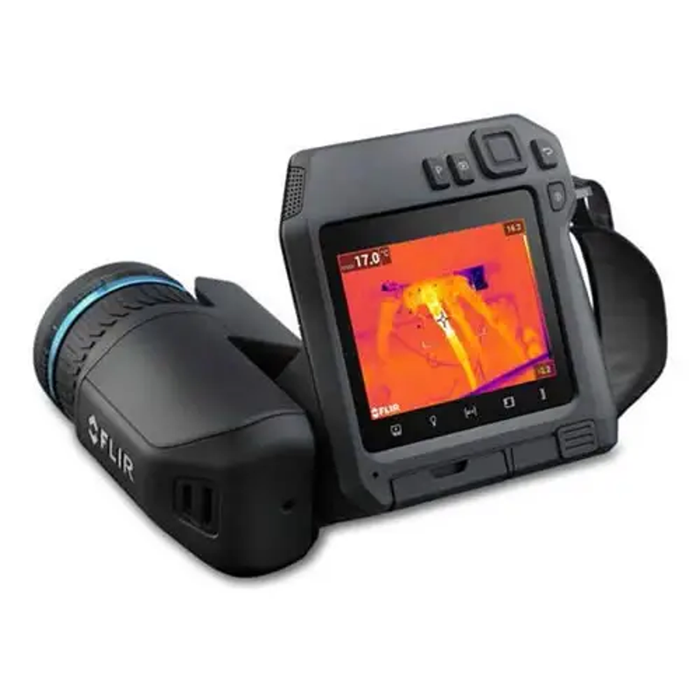

Effortless Ergonomics
180° rotating optical block allows inspections from low or elevated positions without discomfort.
Advanced Thermal Clarity
FLIR Vision Processing combines MSX, UltraMax, and adaptive filtering for highly defined thermal imagery.
Laser-Assisted Autofocus
Delivers sharp images quickly, ensuring precise focus for temperature readings.
Smart Lens Compatibility
AutoCal lenses are interchangeable across FLIR cameras, minimizing calibration downtime.
Efficient On-Site Measurements
Laser distance and area measurement tools allow fast assessment of component accessibility.

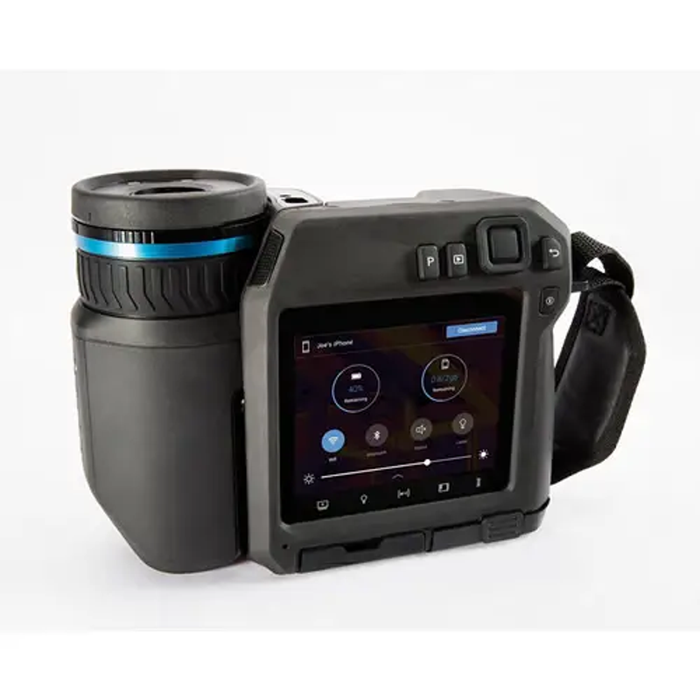

Intuitive Operation
Includes a 4” scratch-resistant LCD, responsive touchscreen, and programmable shortcut buttons.
Streamlined Reporting
Onboard voice/text annotations, GPS tagging, and image sketch features simplify workflow.
Robust Calibration and Certification
NIST-traceable certificate with comprehensive 12-point testing ensures reliable performance and compliance.
What's Included
Included with Your Purchase:
- Teledyne FLIR T530 Thermal Imaging Camera
- 42° AutoCal Lens
- NIST Calibration Certificate
- Battery
- Battery Charger
- USB Cable
- Hard Carrying Case
- Documentation
Specifications
- IR Resolution: 320 x 240 pixels
- Lens Field of View: 42°
- Temperature Range: -4 to 1202°F
- Thermal Sensitivity: <0.03°C at 30°C
- Focus: Laser-assisted, continuous, manual
- Zoom: 1–4× continuous digital
- Display: 4" LCD, 640 × 480
- Frame Rate: 30 Hz
- Storage: SD Card
- Connectivity: Wi-Fi, USB, Bluetooth
- GPS: Built-in
- Weight: Approx. 2.9 lbs (including battery)
- Software Compatibility: FLIR Thermal Studio, METERLiNK-enabled devices
FAQ
Q: Does this camera include NIST calibration?
A: Yes, it includes a NIST-traceable calibration certificate with a 12-point inspection.
Q: Can I switch lenses with other FLIR models?
A: Yes, the AutoCal lenses are interchangeable across supported FLIR cameras.
Q: What is MSX Technology?
A: MSX overlays visible image detail on the thermal image to highlight edges and labels for better clarity.
Q: What’s the purpose of UltraMax?
A: UltraMax enhances resolution and reduces noise by combining data from 16 rapidly captured images into one.
Q: Can I document my inspection findings?
A: Yes, you can add voice annotations, text comments, and GPS-tagged images directly from the camera.
