FLIR T540 Thermal Imaging Camera NIST Certified with MSX UltraMax 24 14 Lenses 464 x 348 -4 to 2732F 30 Hz
The Teledyne FLIR T540-24-14-NIST Thermal Imaging Camera is a high-performance solution engineered for advanced thermographers in power generation, electrical distribution, and manufacturing. Designed with a 180° rotating optical block, MSX and UltraMax image enhancement technologies, and a scratch-resistant 4-inch LCD touchscreen, it enables efficient and precise inspections in difficult and obstructed environments.
With its 464 x 348 thermal resolution, dual lenses (24° and 14°), and wide temperature detection range of -4 to 2732°F, this camera captures up to 161,472 non-contact temperature points for highly accurate data collection. It also features laser-assisted autofocus, built-in GPS, METERLiNK data integration, and customizable work folders, making it a versatile tool for comprehensive diagnostics and professional reporting.

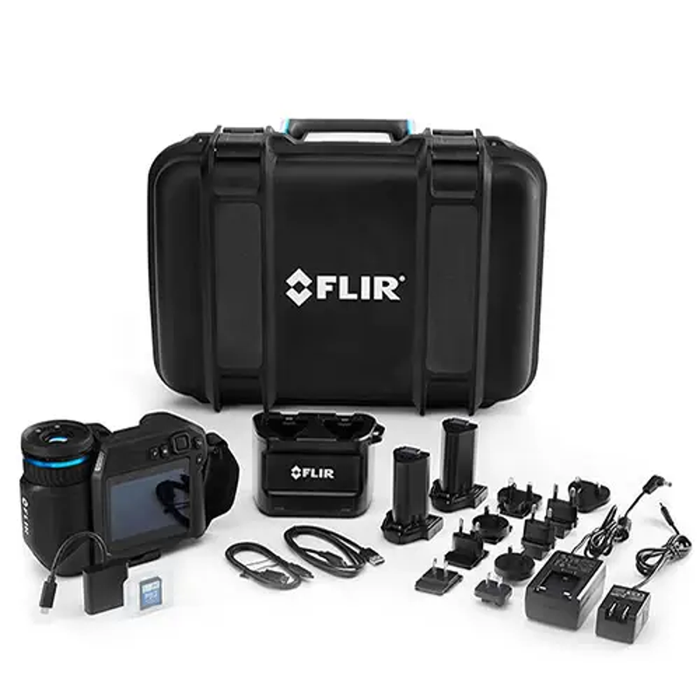

What's Included:
- Teledyne FLIR T540 Thermal Imaging Camera
- 24° Lens
- 14° Lens
- NIST Calibration Certificate
- Smart Battery
- Battery Charger
- Power Supply
- USB Cable
- Neck Strap
- Hard Transport Case
- FLIR Thermal Studio Starter Software
Features
Dual Field-of-View Lenses
Includes both 24° and 14° lenses for flexibility in wide and telephoto thermal imaging applications.
High Thermal Resolution
Provides 464 x 348 resolution with 161,472 temperature measurement points for precise diagnostics.
Wide Temperature Range
Measures from -4°F to 2732°F, ideal for a broad range of industrial applications.
180° Rotating Optical Block
Allows comfortable inspections of hard-to-reach or overhead targets without physical strain.
MSX Image Enhancement
Multi-Spectral Dynamic Imaging overlays visual image details onto thermal images for better clarity and context.
UltraMax SuperResolution
Combines multiple images to enhance detail and reduce noise for improved analysis of small targets.
Laser-Assisted Autofocus
Ensures sharp images and accurate temperature readings every time.
Touchscreen and Intuitive Controls
4-inch scratch-resistant display with programmable buttons for quick and efficient operation.
Laser Distance Measurement
Helps assess component accessibility and on-screen area measurement.
Advanced Reporting Tools
Supports voice annotation, auto-fill text comments, image sketching, and GPS tagging for organized documentation.
Interchangeable AutoCal Lenses
Auto-calibrating lenses can be shared across your camera fleet for increased utility and cost-efficiency.
Built-In GPS and METERLiNK Integration
Embed location data and meter readings from compatible FLIR devices into images.
What's Included
Included with Your Purchase:
- Teledyne FLIR T540 Thermal Imaging Camera
- 24° Lens
- 14° Lens
- NIST Calibration Certificate
- Smart Battery
- Battery Charger
- Power Supply
- USB Cable
- Neck Strap
- Hard Transport Case
- FLIR Thermal Studio Starter Software
Specifications
- Resolution: 464 x 348 pixels
- Lenses: 24° and 14° included
- Temperature Range: -4°F to 2732°F
- Zoom: 1x to 6x continuous
- Display: 4-inch LCD, scratch-resistant
- Image Enhancement: MSX, UltraMax
- Laser Distance Measurement: Yes
- AutoCal Lenses: Supported and interchangeable
- Focus: Laser-assisted autofocus
- Data Annotation: Voice, text, sketch
- Connectivity: USB, METERLiNK, GPS
- Software: FLIR Thermal Studio Starter
- Frame Rate: 30 Hz
- Condition: NEW
FAQ
Q: Does this camera come calibrated?
A: Yes, it includes a NIST Calibration Certificate with traceability to industry standards.
Q: Can I swap lenses between different FLIR cameras?
A: Yes, the AutoCal lenses are interchangeable across supported FLIR models.
Q: How does UltraMax improve thermal imaging?
A: UltraMax combines multiple thermal images into a higher-resolution output with enhanced clarity and accuracy.
Q: What software is included with the camera?
A: The camera comes with FLIR Thermal Studio Starter Software for image analysis and reporting.
