FLIR T840 High-Performance Handheld Thermal Camera with Viewfinder, MSX, UltraMax, and Thermal Studio Pro, 464 x 348, 30 Hz
Experience advanced thermal imaging with this professional-grade handheld thermal camera, ideal for inspections in electrical, mechanical, and industrial environments. Featuring a high-resolution 464 × 348 infrared sensor with FLIR Vision Processing™—including MSX® and UltraMax® technologies—it delivers sharp, detailed thermal images with up to 645,888 effective pixels for precise diagnostics. Engineered for ease of use in the field, the ergonomic design incorporates a 180° rotating optical block for effortless viewing in tight or awkward spaces. Interchangeable FlexView lenses support seamless switching between wide-angle and telephoto views across a range of fields of view (6°, 14°, 24°, 42°, and 80°), streamlining inspections without the need to swap lenses.
A scratch-resistant 4-inch color LCD touchscreen with auto-rotation and a built-in eyepiece viewfinder ensures optimal visibility in any lighting. Laser-assisted autofocus and on-screen laser distance measurement provide accurate temperature targeting, supporting a wide range from -4°F to 2732°F with ±2°C or ±2% accuracy. The integrated FLIR Thermal Studio PRO and Route Creator plugin enable efficient inspection planning and reporting. Real-time Wi-Fi streaming to the FLIR Tools app allows live sharing and collaboration, while FLIR Ignite offers secure cloud storage and remote access. Built-in GPS and METERLiNK support enhance documentation through automated geotagging and instrument integration.
Packed with productivity tools such as voice and sketch annotations, multi-spot measurement, and extensive connectivity via USB, Bluetooth, HDMI, and DisplayPort, this rugged, lightweight device is built for demanding inspection routines.
What's Included:
- FLIR T840 Thermal Camera (variant selected at purchase)
- Smart rechargeable battery (2x)
- Dual-bay battery charger with power supply
- USB cable (Type-C and Type-A)
- Neck strap and hand strap
- Lens cap and lens cleaning cloth
- Hard transport case
- FLIR Thermal Studio PRO license
- 12-month subscription to FLIR Ignite
Features
High-Resolution IR Sensor
Equipped with a 464 × 348 thermal detector and UltraMax super-resolution to deliver up to 645,888 effective pixels.

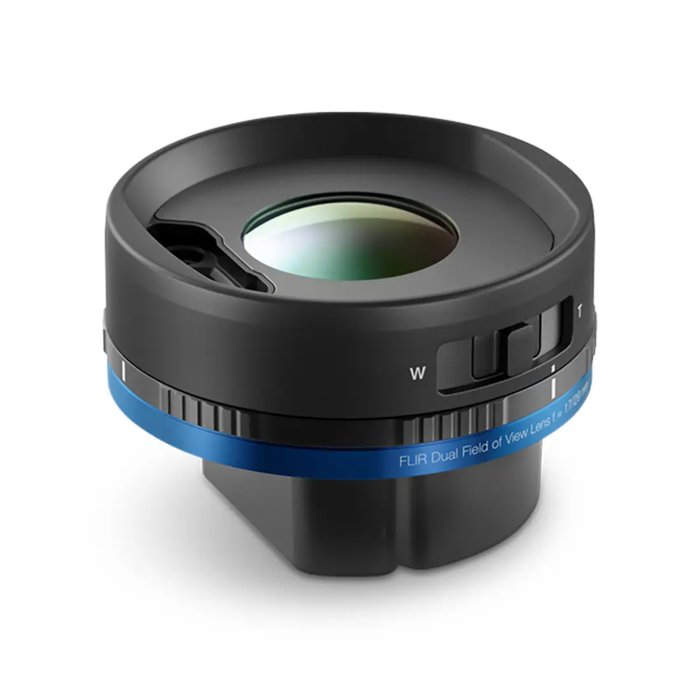

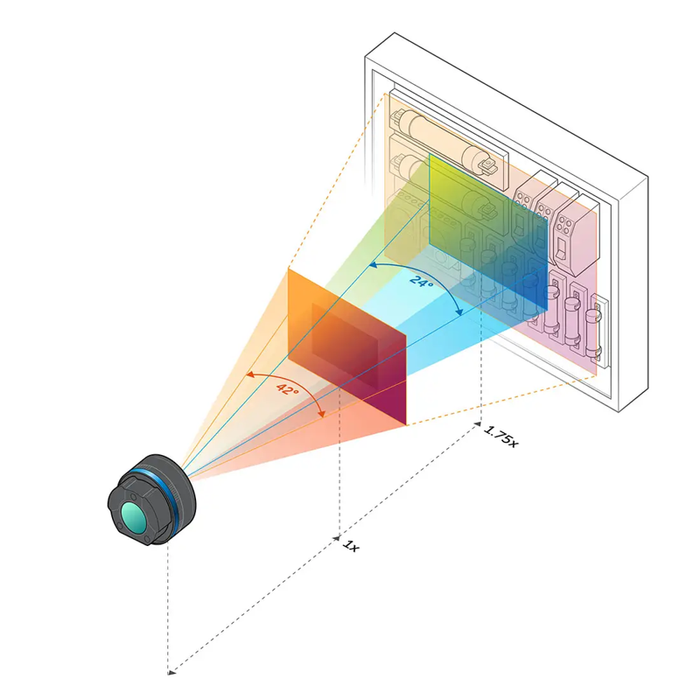

FlexView Dual Field-of-View Lenses
Interchangeable lenses allow seamless switching between wide and narrow fields of view (6° to 80°) without needing to remove or change the lens.

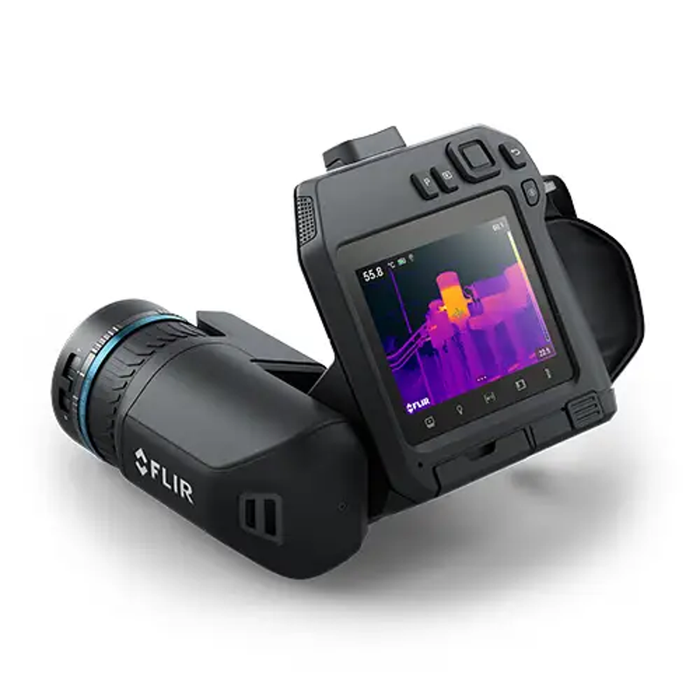

Rotating Optical Block
The 180° rotating lens head makes it easy to capture images from overhead, under, or around objects.

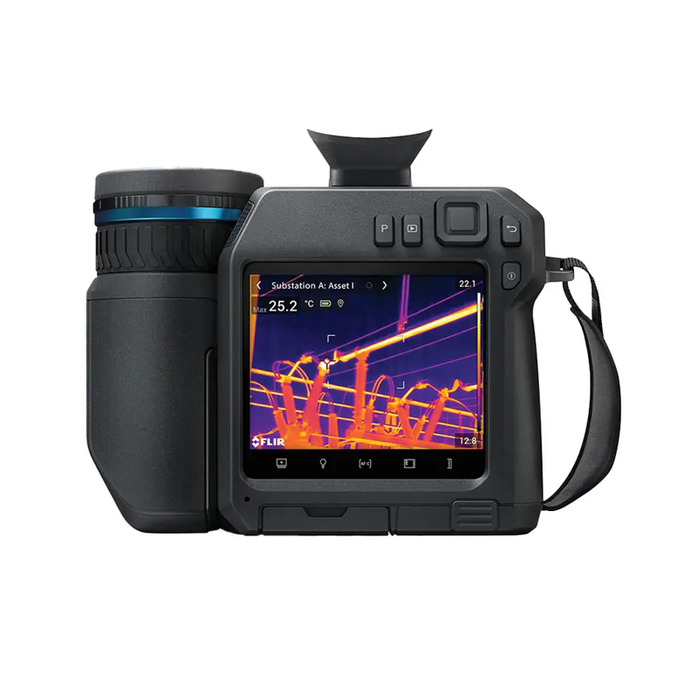

Enhanced Visual Display
Features a 4-inch color LCD touchscreen with scratch-resistant glass and integrated viewfinder for visibility in all conditions.
Laser-Assisted Autofocus
Ensures precise focusing and includes on-screen laser distance measurements for accurate targeting.
Wide Temperature Range
Accurately measures temperatures from -4°F to 2732°F, with high thermal sensitivity and ±2°C or ±2% accuracy.
Integrated Workflow Tools
Includes FLIR Thermal Studio PRO and Route Creator plugin for inspection planning and automated reporting.
Cloud and App Integration
Stream real-time video to the FLIR Tools app and sync data via FLIR Ignite for remote collaboration.
Annotation and GPS Features
Voice, sketch, text, and GPS tagging enhance documentation and context for every inspection.
Rugged and Portable
Designed for durability and comfort, with robust housing, dual battery support, and lightweight construction.
What's Included
Included with Your Purchase:
- FLIR T840 Thermal Camera (variant selected at purchase)
- Smart rechargeable battery (2x)
- Dual-bay battery charger with power supply
- USB cable (Type-C and Type-A)
- Neck strap and hand strap
- Lens cap and lens cleaning cloth
- Hard transport case
- FLIR Thermal Studio PRO license
- 12-month subscription to FLIR Ignite
Specifications
- IR Resolution: 464 × 348 pixels
- Super Resolution (UltraMax): Up to 645,888 pixels
- Temperature Range: -4°F to 2732°F (-20°C to 1500°C)
- Accuracy: ±2°C or ±2%
- Lens Options: FlexView 14°/24°, 24°/42°, 6°, 14°, 24°, 42°, 80°
- Display: 4" color LCD with touchscreen and auto-rotation
- Viewfinder: Integrated eyepiece
- Focus: Laser-assisted autofocus
- Connectivity: USB 2.0, USB-C, Bluetooth, DisplayPort, HDMI
- Wireless: Wi-Fi streaming to FLIR Tools app
- Cloud Storage: FLIR Ignite integration
- Software: FLIR Thermal Studio PRO and Route Creator plugin
- Measurement Tools: Spotmeters, area boxes, annotations, distance measurement
- GPS: Embedded GPS and METERLiNK enabled
- Battery Life: Long runtime with swappable dual battery system
- Durability: Rugged construction for industrial use
FAQ
Q: What thermal resolution does the camera offer?
A: The camera captures thermal images at 464 × 348 resolution and can enhance up to 645,888 pixels using UltraMax.
Q: What lenses are compatible?
A: The system supports FlexView lenses and combinations including 6°, 14°, 24°, 42°, and 80° fields of view.
Q: Can I stream thermal video live?
A: Yes, real-time Wi-Fi streaming to the FLIR Tools app is supported for live collaboration.
Q: Is this suitable for outdoor or bright environments?
A: Yes, the built-in viewfinder and bright touchscreen ensure clear visibility even in direct sunlight.
Q: How is the camera powered?
A: It includes two rechargeable smart batteries with a dual-bay charger for extended use in the field.
