B&G ZC2 Landscape Remote

Name: B&G ZC2 Landscape Remote
Brand: B&G
SKU: 1003191
Price: 524.0 CAD
Availability: InStock

by B&G

$499.00 - $499.00

$499.00

$524.00

$524.00 - $524.00

$524.00

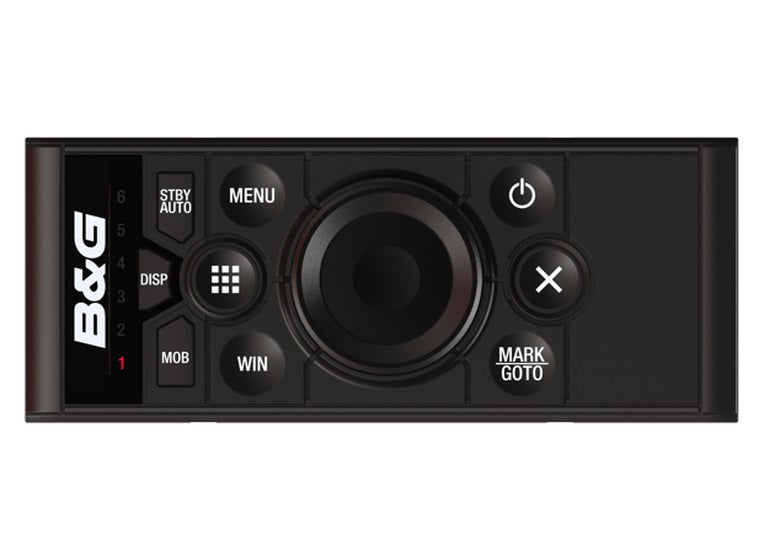

B&G ZC2 Remote controller. (Landscape mount)

Model: 000-12513-001

Dash mount with 8 mm (0.32"") profile
Narrow width enables easy chair arm mounting
Total flush mount (requires bracket)
Control up to 6 MFD displays
Functions with ZEUS all sizes and ZEUS Glass Helm
Vulcan
Keypad configuration is optimized for Simrad HEROiC software control
High volume alarm output for critical notifications
Aluminium control dial with build in cursor functions
High volume alarm output for critical notifications
Single NMEA 2000 connection

The ZC2 remote controller has been designed for use with ZEUS2/3 ZEUS2/3 Glass Helm and Vulcan MFD systems and brings simple and precise MFD control in even the roughest sea conditions. ZC2 has been designed for many mounting configurations and has a solution for every install

ZC2 features a single control dial that provides multi axis controls Rotary selector for menu select, chart zoom etc. X,Y cursor pad for chart panning and cursor placement Push to select enter key

Specifications

Weight	300g(0.66lb)
Dimensions	2.36"" w x 5.9"" H x 1.75"" D
Power Consumption	<100mA @13.5V
Network Load (LEN)	2
Colour	Black
Environmental Protection	IPx6 (from front when dash mounted with gasket)
Alarm Sound Output	75dBA @ 0.5m
Operating Temperature	-15°C to +55°C (5°F to 131°F)
Connector	Molded 1.8 m (6 ft) cable with Micro-C connector

What's in the Box:

ZC2 Remote controller. (Landscape mount)
N2K T-Joiner
Suncover
Dash Mounting Kit
