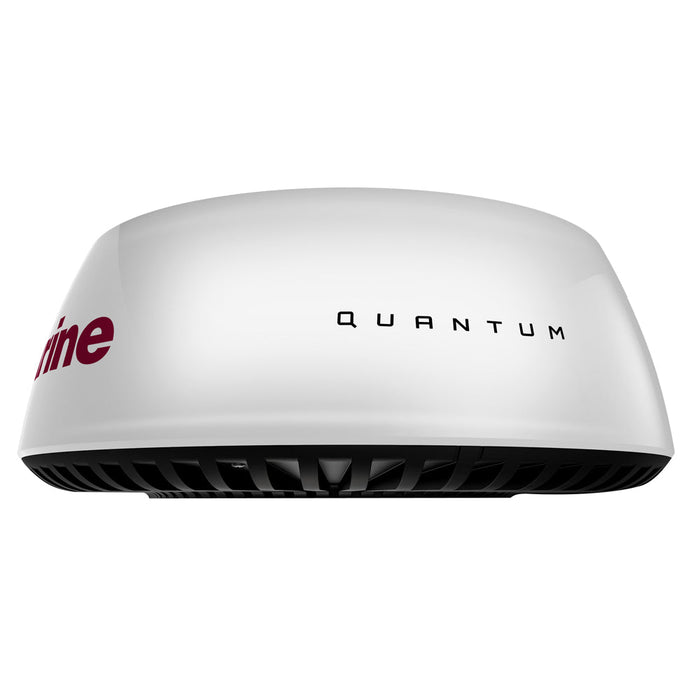

Raymarine Quantum™ Q24W Radome w/Wi-Fi Only - 10M Power Cable Included
Raymarine Quantum™ Q24W CHIRP Radar - Wi-Fi Marine Radome with 24nm Range
Experience next-generation marine radar performance with the Raymarine Quantum Q24W (E70344), featuring revolutionary CHIRP pulse compression technology that delivers unmatched target detection from an ultra-short 18-foot minimum range to full 24 nautical miles. This advanced solid-state radar combines Wi-Fi connectivity with 50% weight reduction for effortless installation and superior on-water safety.
Revolutionary CHIRP Technology Advantages
- Superior Target Detection: CHIRP pulse compression technology transmits more energy to each target, delivering exceptional imaging clarity on both short and long ranges
- Unmatched Short Range Performance: Industry-leading 18-foot (6m) minimum range detects navigation hazards, small craft, and obstacles invisible to traditional magnetron radars
- Advanced Target Separation: FLIR's exclusive ATXT technology distinguishes between boats, landmarks, buoys, and weather cells with unprecedented resolution
- Small Target Detection: Identifies weak targets even when positioned close to strong radar returns, enhancing collision avoidance capabilities
Simplified Wi-Fi Installation & Operation
Wireless Connectivity
Wi-Fi-only design connects seamlessly to any Raymarine LightHouse II MFD without requiring dedicated radar cables. Perfect for retrofit installations or new boat builds.
Lightweight Design
Weighs 50% less than comparable magnetron radars at just 21.3" diameter x 8.25" height, reducing mast loading and installation complexity.
Energy Efficient Operation
Ultra-low power consumption of only 17 watts transmitting and 7 watts standby extends battery life during extended cruising or sailing.
Safe Emissions
Solid-state technology produces minimal RF emissions, allowing safe mounting anywhere onboard without radiation exposure concerns.
Technical Specifications
| Model Number: | E70344 |
| Radar Type: | CHIRP Pulse Compression Radome |
| Array Size: | 18" (457mm) Diameter |
| Detection Range: | 18 feet to 24 nautical miles |
| Rotation Speed: | 24 RPM |
| Power Output: | 17 Watts (transmit) / 7 Watts (standby) |
| Operating Voltage: | 12V to 24V DC |
| Beam Width: | 4.9° Horizontal / 20° Vertical |
| Dimensions: | 21.3" Diameter x 8.25" Height |
| Waterproof Rating: | IPX6 Marine Grade Protection |
| Connectivity: | Wi-Fi Only (802.11n) |
| Included Accessories: | 10-meter power cable, mounting hardware |
Installation & Compatibility
System Requirements
- Compatible with Raymarine LightHouse II MFDs (aX7, gS, eS, and c/e series)
- Wi-Fi network capability for radar data transmission
- 12V to 24V DC power supply with 20-amp circuit protection
- Standard Raymarine radar mounting bolt pattern
Installation Benefits
- Easy Upgrade Path: Uses same mounting bolt pattern as previous Raymarine radars
- Thin Cable Routing: Small diameter power cable simplifies installation through tight spaces
- No Warm-Up Required: Solid-state technology provides instant-on operation
- Interference Rejection: Advanced digital processing eliminates noise from other radar sources
Advanced Safety & Performance Features
Collision Avoidance
Exceptional close-range detection identifies potential collision hazards, debris, and navigation obstacles that traditional radars miss.
Weather Detection
CHIRP technology provides enhanced precipitation detection for storm avoidance and route planning in challenging conditions.
Target Tracking
Superior target separation identifies and tracks multiple vessels simultaneously for enhanced situational awareness.
Low Emission Operation
Solid-state design eliminates high-power magnetron emissions, ensuring safe operation around crew and passengers.
Warranty & Professional Support
Limited 2-Year Warranty: Comprehensive coverage backed by Raymarine's global service network and technical support.
- Global warranty coverage through authorized service centers
- Professional installation support and documentation
- Compatible with Raymarine's full ecosystem of marine electronics
- Regular firmware updates for enhanced performance
Frequently Asked Questions
What is CHIRP pulse compression technology and why is it important?
CHIRP (Compressed High Intensity Radiated Pulse) technology transmits a swept frequency pulse instead of a single frequency, allowing more energy to reach targets. This results in superior target separation, enhanced detail resolution, and better detection of small or weak targets compared to traditional pulse radars.
Can the Quantum Q24W connect to non-Raymarine displays?
The Q24W is designed specifically for Wi-Fi connectivity with Raymarine LightHouse II MFDs. It requires a compatible Raymarine display for operation and cannot connect directly to third-party chartplotters or displays.
How does the 18-foot minimum range benefit navigation?
The ultra-short minimum range allows detection of close-in hazards like floating debris, small boats, dock pilings, and navigation markers that are invisible to traditional magnetron radars. This significantly enhances safety during docking, anchoring, and close-quarters maneuvering.
What power savings can I expect compared to magnetron radar?
The Quantum consumes approximately 75% less power than comparable magnetron radars, drawing only 17 watts during transmission and 7 watts in standby mode. This dramatic power reduction extends battery life and reduces charging requirements during extended cruising.
Is the radar ready to use immediately after power-on?
Yes, solid-state technology provides instant-on operation without any warm-up period required by magnetron radars. The system is ready to transmit and receive within seconds of power-up.
What mounting hardware is included with the Q24W?
The radar includes complete mounting hardware for standard installations, plus a 10-meter power cable. The unit uses the same bolt pattern as previous Raymarine radars for easy upgrades.
The Raymarine Quantum Q24W represents the pinnacle of modern marine radar technology, combining CHIRP pulse compression, Wi-Fi connectivity, and ultra-low power consumption in a lightweight, easy-to-install package. Whether navigating crowded harbors, avoiding weather, or detecting collision hazards, this advanced radar system provides the performance and reliability demanded by serious mariners.
Raymarine Quantum is a compact, high-performance solid-state marine radar featuring CHIRP pulse compression technology. Setting a new standard for radar imaging, Quantum delivers superior radar target recognition on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum's energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
Raymarine E70344 Attributes
- Radar Type: Radome
- Size: 18 Inch Dome
- Range: 24 Nautical Miles
- Rotation Speed: 24 RPM
- Power Output: 17 Watt
- Dimension: 21.3 Inch Diameter x 8-1/4 Inch Height
- Input Voltage: 12 Volt To 24 Volt
- Beam Width: 4.9 Degree Horizontal/ 20 Degree Vertical
- Color: White
- Waterproof Rating: IPX6 Rating Waterproof
- Includes: Mounting Hardware/ 10 Meter Power Cable
Raymarine E70344 Features & Benefits
- Provides Excellent Short-Range Detection And Enhanced Target Detail With 18 Feet Minimum Range
- CHIRP Pulse Compression Ensures More Energy Reaches Each Target, Resulting In Superior Imaging On Long Ranges
- Superior Interference Rejection Eliminates Noise From Other Radars
- Easy Upgrade: Quantum Fits The Same Bolt Pattern As Other Raymarine Scanners
- Lightweight And Easy To Install: Quantum Weighs Up To 50 Percent Less Than Comparable Magnetron Radars
- Safe Emissions: Mount Quantum Anywhere Onboard
- Wi-Fi Only Version Allows For A Quick, Simple Installation
- Limited 2 Year Warranty
Raymarine E70344 Installation Instructions
Raymarine E70344 Warranties
Raymarine E70344 Technical Bulletins
- Quantum Radome Installation instructions 87209-8-EN.pdf
- Quantum Radar E70210 3D PDF.PDF
- Quantum Radar E70210 3D PDF.PDF
Quantum Q24W Radome w/Wi-Fi Only - 10M Power Cable Included
Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.
Setting a standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum's energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
Superior Radar Imaging
FLIR's exclusive ATXT advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.
CHIRP Pulse Compression
Excellent short-range detection and enhanced target detail with 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.
Small Target Detection
Quantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.
Simplified Installation
Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD. Quantum's small diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables.
Energy Efficient & Lightweight Design
Weighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low power solid state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). Extended vessel battery life when under sail.
