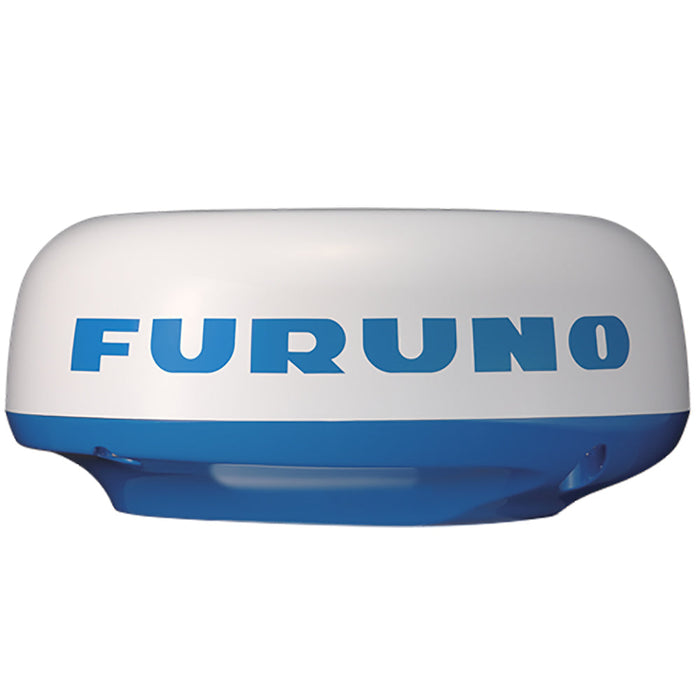

Furuno DRS4DL+ Radar Dome, 4kw, 19" 36NM
The DRS4DL+ is a 19 Inch dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4 Kilowatt Radar is presented in a compact, rugged 19 Inch dome with a 5.2 Degree horizontal beam width antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL+ utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.
Furuno DRS4DLPLUS Attributes
- Radar Type: Radome
- Size: 19 Inch Dome
- Range: 0.0625 to 36 Nautical Miles
- Rotation Speed: 24 RPM
- Power Output: 4000 Watt
- Dimension: 19.2 Inch Diameter X 8.6 Inch Height
- Input Voltage: 12 To 24 Volt
- Beam Width: 5.2 Degree
- Color: White
- Waterproof Rating: IPX6 Rating Waterproof
Furuno DRS4DLPLUS Features & Benefits
- Designed To Work With NavNet TZtouch And TZtouch2 Systems
- Fast Target Tracking
- With Accurate Tracking Information, Estimation Of Other Vessel's Course And Speed Is Made Simple
- IPX6 Waterproof
- Limited 3 Year Warranty
DRS4DL+ Radar Dome, 4kw, 19" 36NM
The DRS4DL+ is a , 19" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2. This 4kW Radar is presented in a compact, rugged 19" dome with a 5.2 degree horizontal beamwidth antenna. Furuno's automatic, real-time digital signal processing presents navigators with some of the clearest targets they'll ever find from a Radar of this compact size. The DRS4DL+ utilizes a wired connection with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this single-wire solution results in a very simple installation.
The DRS4DL+ spins at a fixed 24RPM, and has range scales from 1/8 nm to 36 nm. The DRS4DL+ is designed to work with NavNet TZtouch and TZtouch2 systems. It is not compatible with NavNet 3D.
Fast Target Tracking (TT) / ARPA on the DRS4DL+ manually or automatically acquires and tracks 10 targets*. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessel's course and speed is made simple.
*heading sensor required
Features:
- Compact 19" 4kW / 24 RPM / 36NM UHD Radome
- 5.2° horizontal / 25° vertical beamwidth
- Ultra-High Definition (UHD) Digital Radar delivers crystal-clear targets
- "Fast Target Tracking" TT / ARPA provides heading and speed for up to 10 targets (*heading sensor required)
- Advanced auto-adjust settings for Gain/Sea Clutter/Rain Clutter
- Easy installation w/"pigtail" for power & LAN, including 15m signal cable
- 12-24 VDC supplied by ship's mains (no PSU required)
- Lightweight 5.7kg/12.5lbs design
- Low power consumption: 23 Watt TX / 10 Watt STBY
- IPX6 waterproofing & -25°C to 55°C environmental rating
- Compatible with NavNet TZtouch (v5.01 or higher) & TZtouch2 (v5.02 or higher)
This 4kW radar uses a compact, rugged 19-inch dome with a 5.2-degree horizontal beamwidth antenna. Furuno's automatic real-time digital signal processing function can realize... !!!!----
