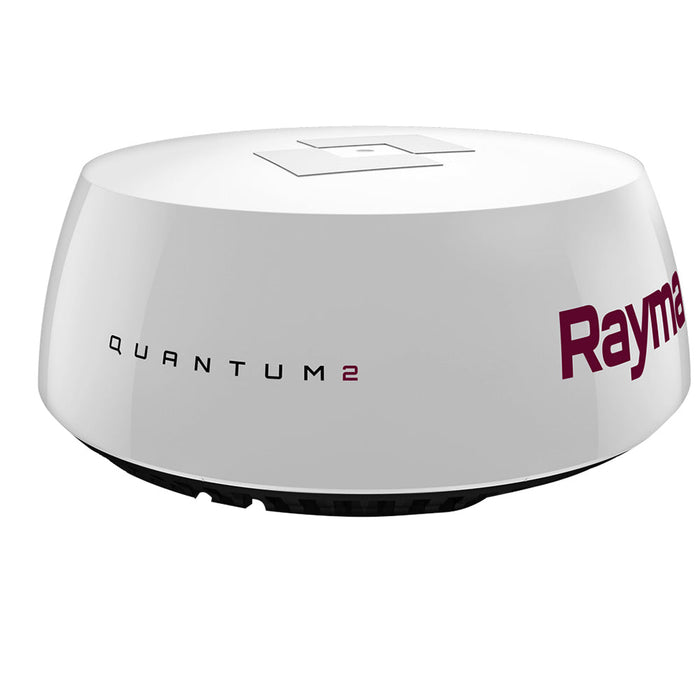

Raymarine Quantum 2 Q24D Dopper Radar - No Cable
Raymarine Quantum 2 Q24D Doppler CHIRP Radar - Advanced Marine Collision Avoidance System
Navigate with unprecedented confidence using the Raymarine Quantum 2 Q24D Doppler Radar, featuring revolutionary collision avoidance technology that transforms how you detect and avoid dangerous traffic. This next-generation CHIRP pulse compression radar provides superior target awareness from 18 feet to 24 nautical miles, making it the ultimate choice for safety-conscious mariners navigating congested waterways.
Revolutionary Doppler Collision Avoidance Technology
The Quantum 2's advanced Doppler processing instantly identifies and color-codes moving radar contacts, providing critical situational awareness at a glance. Inbound targets appear red while outbound targets display green, allowing you to instantly recognize potentially dangerous vessels and take appropriate evasive action. This same MARPA target tracking technology is trusted by the United States Coast Guard for professional maritime operations.
Exclusive Safety Sector Protection
Quantum 2's innovative Safety Sector feature automatically highlights both moving and stationary threats within a 15-degree zone extending 200 meters from your bow. This ensures maximum visibility to dangerous targets including buoys, rocks, pilings, and slow-moving vessels that might otherwise be overlooked in traditional radar displays.
Professional-Grade Technical Specifications
- Radar Range: 18 feet minimum to 24 nautical miles maximum
- Array Size: 18-inch radome (21.3" diameter x 8.25" height)
- Power Output: 20W peak, 17W transmit consumption
- Beam Width: 4.9° horizontal / 20° vertical
- Rotation Speed: 24 RPM for optimal target detection
- Frequency Range: X-band (9354-9446 MHz)
- Waterproof Rating: IPX6 marine environmental protection
- Operating Temperature: -10°C to +55°C (-25°C to +70°C storage)
Advanced CHIRP Pulse Compression Features
- Ultra-Short Range Detection: CHIRP technology detects contacts as close as 18 feet for zero-visibility navigation
- Automatic ARPA Tracking: Tracks up to 10 simultaneous targets with course, speed, and CPA calculations
- TrueTrails Target History: Visual "wake" display behind moving contacts for enhanced motion interpretation
- Superior Interference Rejection: Eliminates noise from other radar systems
- Instant Start-Up: Ready for operation in seconds, not minutes
Flexible Installation and Connectivity Options
The E70498 model offers maximum installation flexibility with both WiFi wireless connectivity and traditional hardwired network connections. Compatible with Raymarine's thin-wire network architecture, the Quantum 2 easily integrates with existing multifunction displays and chart plotters throughout your vessel.
Installation Benefits
- Lightweight Design: Up to 50% lighter than comparable magnetron radars
- Easy Upgrade Path: Uses same mounting bolt pattern as other Raymarine scanners
- Low Power Consumption: Ideal for battery-powered sailing vessels
- Safe Emissions: Mount anywhere onboard without radiation concerns
- Built-in WiFi: Wireless connection eliminates complex cable routing
How Doppler Radar Technology Works
Quantum 2's sophisticated Doppler processing analyzes frequency shifts in returning radar echoes to determine target movement. Moving vessels create frequency changes based on their approach or departure speed, allowing the system to classify and color-code targets automatically. This advanced signal processing provides mariners with instant visual cues about traffic patterns and collision risks.
Package Contents and Warranty
Your Quantum 2 Q24D includes the radome unit, M8 mounting hardware with washers, mounting template, and comprehensive documentation. Note: This model does not include power or data cables, which must be purchased separately for your specific installation requirements.
- Quantum 2 Radome Unit
- Stainless Steel Mounting Hardware
- Installation Template and Documentation
- 2-Year Limited Warranty Coverage
Frequently Asked Questions
What is the minimum detection range of the Quantum 2?
The Quantum 2 Q24D features CHIRP pulse compression technology that detects targets as close as 18 feet, providing exceptional short-range detection for zero-visibility navigation and collision avoidance.
How does the Doppler collision avoidance system work?
The Doppler system analyzes frequency shifts in radar echoes from moving targets. Inbound vessels appear red while outbound targets display green, providing instant visual identification of potentially dangerous traffic patterns.
Can the Quantum 2 be connected wirelessly?
Yes, the Quantum 2 features built-in WiFi connectivity, allowing wireless connection to compatible Raymarine multifunction displays without running data cables. Traditional hardwired connections are also supported.
What is the Safety Sector feature?
Safety Sector automatically highlights dangerous stationary and moving targets within a 15-degree zone extending 200 meters from your bow, including buoys, rocks, and slow-moving vessels that pose collision risks.
Does this model include cables?
No, the E70498 model does not include power or data cables. You'll need to purchase appropriate Raymarine power and network cables separately based on your installation requirements.
Professional Marine Safety Solution
The Raymarine Quantum 2 Q24D represents the pinnacle of marine radar technology, combining solid-state reliability with advanced Doppler processing for unmatched collision avoidance capabilities. Whether navigating busy harbors, coastal waters, or open ocean, this professional-grade radar system provides the critical safety information needed for confident vessel operation in all conditions.
Keep inexperienced boaters and hidden dangers at bay even in the most congested waterways. Quantum ™ 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound.
Raymarine E70498 Attributes
- Radar Type: Radome
- Size: 18 Inch Dome
- Range: 24 Nautical Miles
- Rotation Speed: 24 RPM
- Power Output: 17 Watt
- Dimension: 21.3 Inch Diameter x 8-1/4 Inch Height
- Beam Width: 4.9 Degree Horizontal/ 20 Degree Vertical
- Color: White
- Waterproof Rating: IPX6 Rating Waterproof
- Includes: Mounting Hardware
Raymarine E70498 Features & Benefits
- Provides Excellent Short-Range Detection And Enhanced Target Detail With 18 Feet Minimum Range
- Doppler Moving Target Display Allows For Superior Situational Awareness At A Glance
- Fully Automatic MARPA Target Tracking, Along With Manual MARPA Mode
- Adjustable TrueTrails Target History Shows The Motion History Of Moving Contacts
- Quantum 2 Doppler Radar, Perfect For Sailboats, Ribs And Smaller Powerboats
- Simplified, Fast Installation And Can Utilize Existing Raymarine Scanner Fixing Points
- Once Installed, Quantum 2 Starts Right Up And Immediately Provides Awareness
- Limited 2 Year Warranty
Raymarine E70498 Installation Instructions
Raymarine E70498 Warranties
Raymarine E70498 Technical Bulletins
Quantum 2 Q24D Dopper Radar - No Cable
The Raymarine Quantum 2 Radar has Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.
Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.
Easily Identify Dangerous Targets
Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.
Safer Navigation
Quantum 2’s exclusive Safety Sector feature provides the maximum level of visibility to dangerous targets in the path of your vessel (both mobile and stationary).
Superior Collision Avoidance
Doppler-enabled MARPA provides an effortless means of dangerous target tracking by eliminating the need to setup guard zones. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.
Features:
- Doppler moving target display allows for superior situational awareness at-a-glance
- Fully automatic ARPA target tracking, along with manual MARPA mode
- Adjustable TrueTrails target history shows the motion history of moving contacts
- CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation
- 24-mile range for early detection of traffic, navigation aids, landfall and weather
- Immediate awareness – Quantum starts up and is ready to go in seconds
- Superior interference rejection eliminates noise from other radars
- Simplified installation with Wi-Fi or thin wire network connectivity
- Easy upgrade – Quantum 2 fits the same bolt pattern as other Raymarine scanners
- Lightweight and easy to install – Quantum weighs up to 50% less than comparable magnetron radars
- Safe emissions – mount Quantum anywhere onboard
- Low power consumption for extended battery life under sail
How Doppler Radar Works:
- Microwave energy waves are bounced off of a distant target, just like conventional radar.
- Moving targets send back echoes whose frequencies shift upward or downward from what was originally transmitted.
- For inbound targets, the frequency increases as the leading edge of the returning echoes are received more frequently as the target’s range decreases.
- For outbound targets, the frequency drops as the returning echoes spread out as its range increases.
- Doppler radars are engineered to detect these small shifts in wave frequency, and use them to classify moving radar targets.
Doppler Target Processing
Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.
Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.
- Inbound targets are colored red
- Outbound targets are colored green
Color coded targets make it simple to pick out moving traffic from other stationary targets like land, navigation aids or stopped/anchored vessels.
Quantum 2 Safety Sector
Doppler does an excellent job of bringing attention to moving targets, but it does downplay stationary targets, that can be equally as dangerous.
Safety Sector provides equal attention to these imminent threats by coloring them as inbound targets. Potential targets include:
- Buoys
- Exposed Hazard (rocks, pilings, etc...)
- Slow moving, low visibility vessels
- Quantum 2's Safety Sector spreads 15° from the bow to a distance of approximately 200m
NOTE: The safety sector is not visible on the display. Quantum 2 automatically processes and highlights targets within this region in red.
The Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone. Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You’ll be alerted to dangerous contacts with audible alerts and easy to understand on-screen graphics.
Quantum 2 also features Raymarine’s True Trails target history display. The True Trails features enables you to see a historical “wake” behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels, and make smart maneuvering decisions to pass safely.
Like every Raymarine Quantum system, you’ll also benefit from a rugged and lightweight design that is super-easy to install. Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.
The Quantum 2 with Doppler truly sets the standard for on the water safety and collision avoidance.
Quantum 2 Q24D Doppler radar-No cable Raymarine Quantum 2 radar has Doppler collision avoidance technology. Quantum 2 Next Generation CHIRP Pulse Compression Radar is composed of... !!!!----
