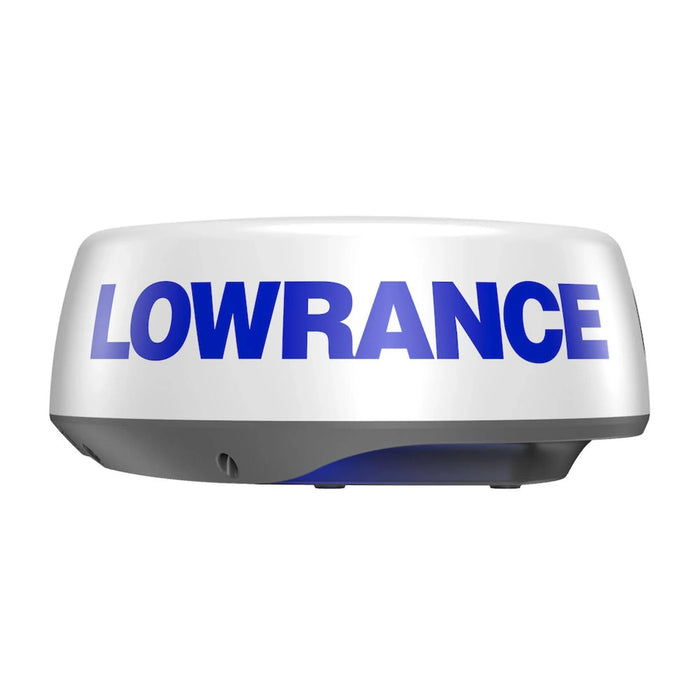

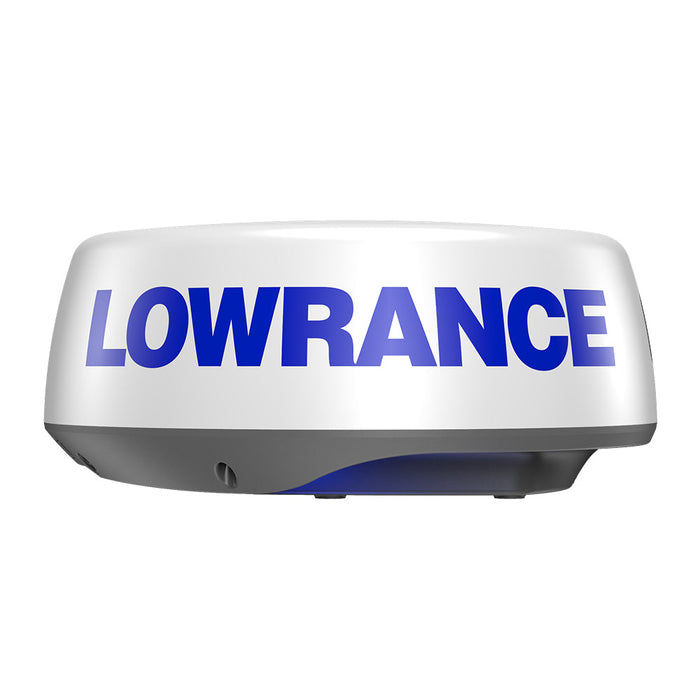

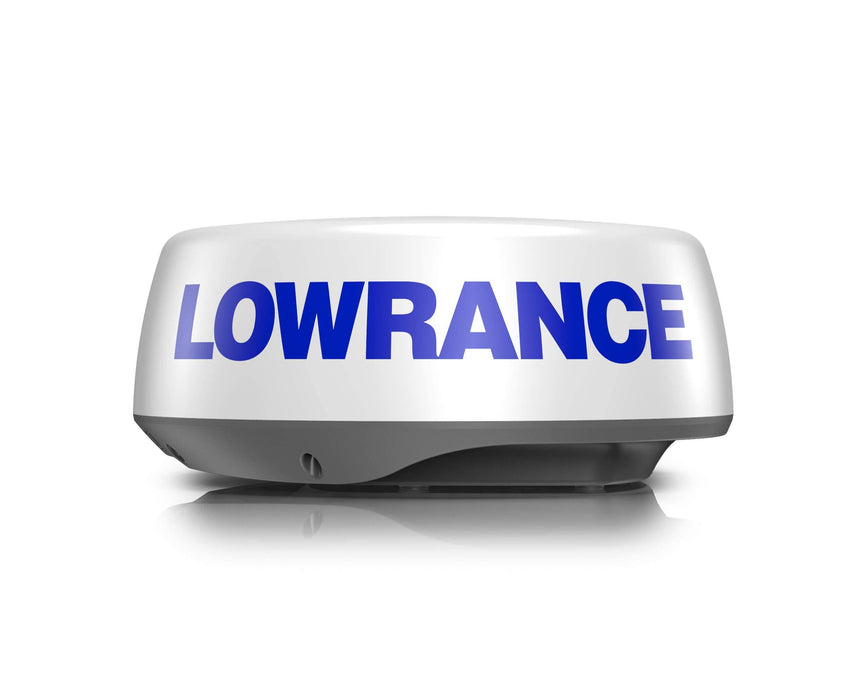

Lowrance HALO20+ 20" Radar Dome w/5M Cable
Get an almost real-time view with HALO20+. Industry-leading 60 RPM operation at close range provides the best in collision avoidance. Identify hazards instantly with VelocityTrack ™ Doppler technology and enjoy both short and long-range coverage-up to 36 Nautical Mile from a compact 20 Inch dome antenna.
Lowrance Electronics 0014542001 Attributes
- Radar Type: Radome
- Size: 20 Inch Dome
- Range: 36 Nautical Miles
- Rotation Speed: 60 RPM
- Power Output: 29 Watt
- Dimension: 20 Inch Diameter x 8.8 Inch Height
- Input Voltage: 10.5 To 31.2 Volt
- Beam Width: 4.9 Degree Horizontal Nominal 2 Degree With Target Separation On High X 25 Degree Vertical
- Color: White
- Waterproof Rating: IPX6 Rating Waterproof
- Includes: With 1.5 Meter Cable RJ45 To 5 Pin, 5 Meter Cable For HALO Dome Radar/ Nemesis™
Lowrance Electronics 0014542001 Features & Benefits
- Advanced Pulse Compression Technology With Beam Sharpening
- Simultaneous Dual Range Operation Sees Both Near And Far
- Ultra-Fast 60 RPM Operation At Ranges Up To 1.5 Nautical Mile
- VelocityTrack ™ Doppler Technology For Collision Avoidance
- Easy Operation With harbor, Offshore, Weather And Bird Modes
- Ready Instantly From Standby
- Limited 2 Year Warranty
Lowrance Electronics 0014542001 Installation Instructions
Lowrance Electronics 0014542001 Technical Bulletins
HALO20+ 20" Radar with 5M Cable
See Far And Near With One Compact Dome
Perfect for a wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Best View To Avoid Collision
HALO20+ radar does a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.
Built-in VelocityTrack™ Doppler Technology
VelocityTrack™ technology grands instant visual feedback on whether targets are coming towards you or moving away with colour-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
Ready Whenever You Are
HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.
Easy to Use Radar
Harbour, offshore, weather and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.
Features:
- 36 nm range from a compact 20-inch dome
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation sees both far and near
- Ultra-fast 60 RPM operation at ranges up to 1.5 nm
- VelocityTrack™ Doppler technology to avoid collision
- Easy operation with harbour, offshore, weather and custom modes
- MARPA target tracking (up to 10 targets, 20 in dual range)
- Ready instantly from standby
- Low power consumption
Included:
- 20" dome
- 5m cable (000-14547-001)
- Ethernet Adapter Cable (000-14552-001)
