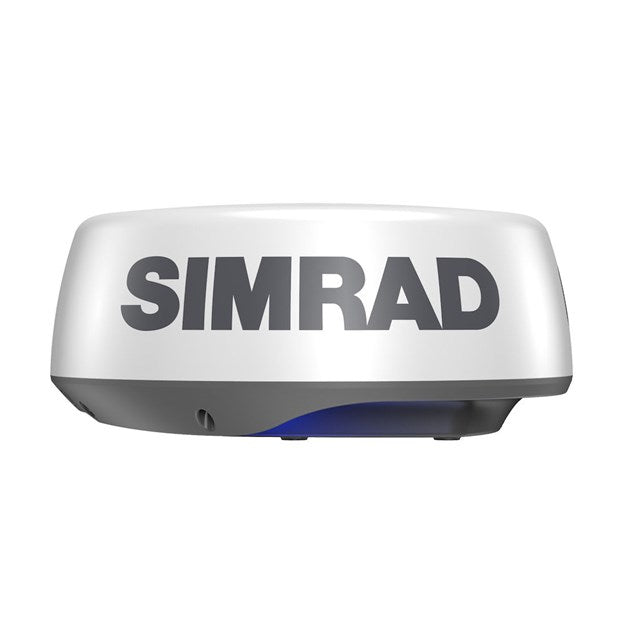

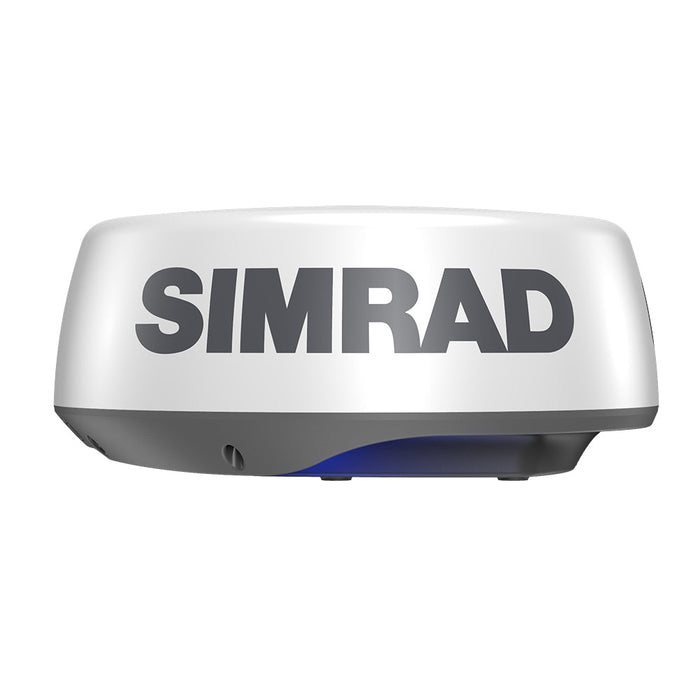

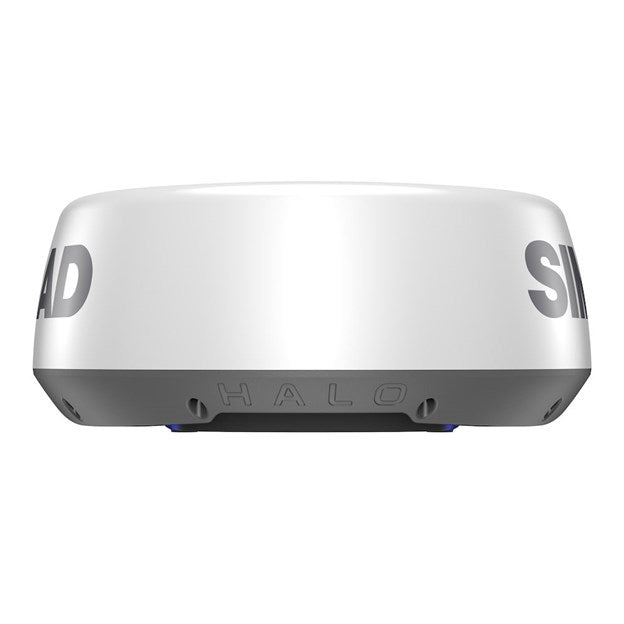

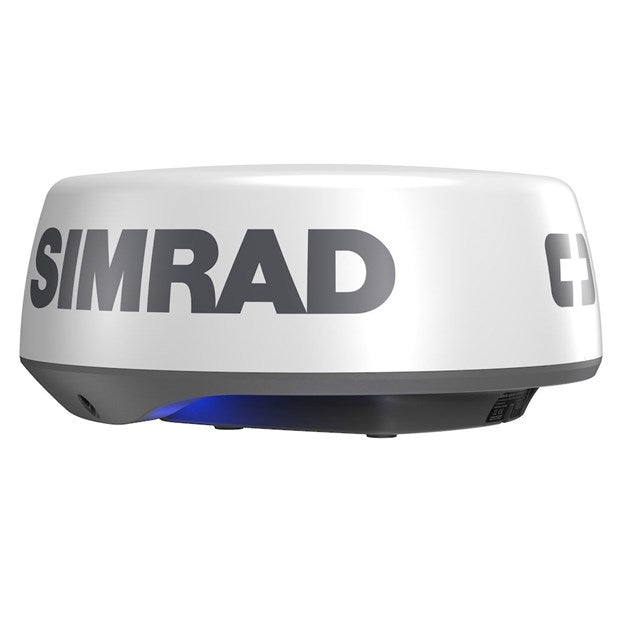

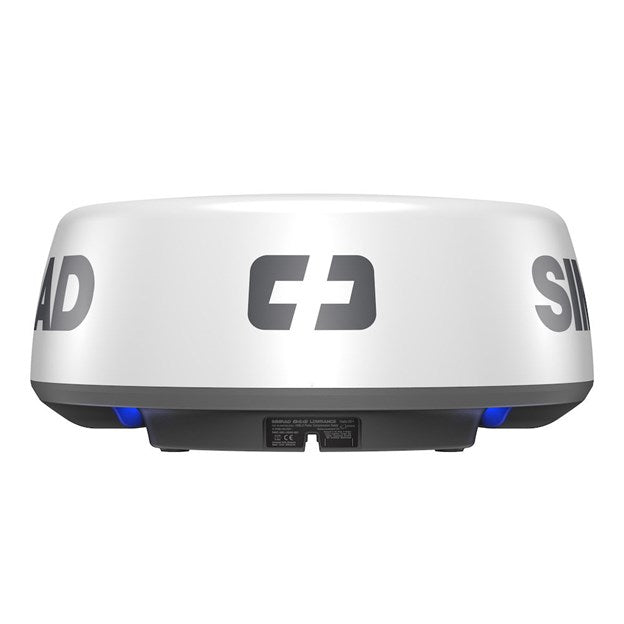

Simrad HALO20+ 20" Radar Dome w/10M Cable
HALO20+ delivers an almost real-time view, with industry-leading 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack ™ Doppler technology, and enjoy simultaneous short and long-range coverage: up to 36 nautical Mile: from a compact 20 Inch dome antenna. See Near and Far with One Compact Dome: Perfect for a wide range of coastal bay boats, HALO20+ comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets. The Ultimate View for Collision Avoidance: HALO20+ radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 Nautical Mile. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.
Simrad 0014536001 Attributes
- Radar Type: Dome
- Size: 20 Inch Dome
- Range: 46 Nautical Miles
- Rotation Speed: 60 RPM
- Power Output: 20 Watt
- Dimension: 20 Inch Diameter x 8.8 Inch Height
- Input Voltage: 10.5 To 31.2 Volt
- Beam Width: 4.9 Degree Horizontal/ 25 Degree Horizontal
- Color: White
- Waterproof Rating: IPX6 Rating Waterproof
- Includes: With 10 Meter Cable
Simrad 0014536001 Features & Benefits
- 36 Nm Range From A Compact 20 Inch Dome
- Advanced Pulse Compression Technology With Beam Sharpening
- Simultaneous Dual Range Operation Sees Both Near And Far
- Ultra-Fast 60 RPM Operation At Ranges Up To 1-1/2 Nm
- VelocityTrack ™ Doppler Technology For Collision Avoidance
- MARPA Target Tracking: Up To 10 Targets, 20 In Dual Range
- Ready Instantly From Standby
- Easy Operation With Harbour, Offshore, Weather, And Bird Modes
- Limited 2 Year Warranty
Simrad 0014536001 Installation Instructions
Simrad 0014536001 Warranties
Simrad 0014536001 Technical Bulletins
HALO20+ 20" Radar with 10M Cable
See Far And Near With One Compact Dome
Perfect for a wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Best View To Avoid Collision
HALO20+ radar does a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.
Built-in VelocityTrack™ Doppler Technology
VelocityTrack™ technology grands instant visual feedback on whether targets are coming towards you or moving away with colour-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
Ready Whenever You Are
HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.
Easy to Use Radar
Harbour, offshore, weather and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.
Features:
- 36 nm range from a compact 20-inch dome
- Advanced pulse compression technology with beam sharpening
- Simultaneous Dual Range operation sees both far and near
- Ultra-fast 60 RPM operation at ranges up to 1.5 nm
- VelocityTrack™ Doppler technology to avoid collision
- Easy operation with harbour, offshore, weather and custom modes
- MARPA target tracking (up to 10 targets, 20 in dual range)
- Ready instantly from standby
- Low power consumption
Included:
- 20" dome
- 10m cable (000-14548-001)
- Ethernet Adapter Cable (000-14552-001)
HALO20+ 20-inch radar with 10M cable, with a compact dome, for viewing from a distance, HALO20+ is equipped with a compact 20-inch dome antenna, which is perfect for large medium to large sailing ships. !!!!----
