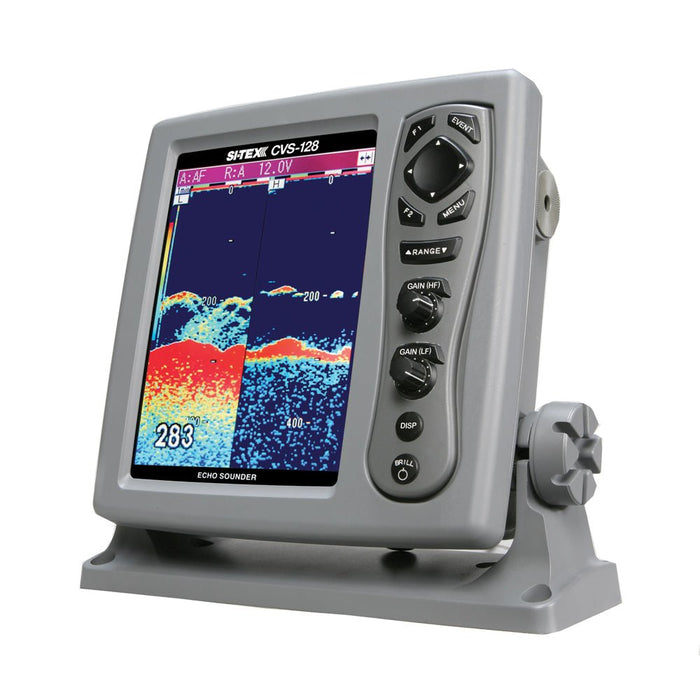

SI-TEX CVS 128 8.4" Digital Color Fishfinder [CVS-128]

The SI-TEX CVS-128 Digital Echo Sounder is a high-performance fishfinding system engineered for serious anglers who demand precision, clarity, and advanced functionality. Equipped with a powerful digital signal processor and dual-frequency 50/200 kHz operation, it delivers high-definition sonar images that clearly distinguish fish targets, bottom structure, and underwater detail across both shallow and deep water environments.

Its large 8.4" color LCD display is designed for maximum visibility in daylight, offering multiple color levels for enhanced target separation and readability. With a powerful 1000W output and depth ranges reaching up to 3600', the CVS-128 provides exceptional performance for a wide range of fishing conditions. Packed with intelligent features like Sona-Tone audio identification, GPS hotspot tracking, and real-time A-scope display, this system gives you the tools to fish smarter and navigate with confidence.

What's Included:

• Display Unit With Hard Cover
• Mounting Bracket
• DC Power Cable
• Fuses
• Operation Manual

Features

Dual-Frequency SONAR Performance
Operates on 50/200 kHz frequencies for optimal performance in both shallow and deep water. This ensures accurate detection and improved target separation in varying conditions.

Advanced Digital Signal Processing
Delivers high-definition sonar images with enhanced clarity and detail. This makes it easier to identify fish, structure, and bottom composition.

Large 8.4" Daylight Viewable Display
The bright color LCD screen provides excellent visibility even in direct sunlight. Multiple color levels (8, 16, 64) enhance contrast and readability.

High Power And Deep Range Capability
With 1000W output and depth ranges up to 3600', the system performs reliably in both shallow and offshore environments. Ideal for serious anglers targeting deeper waters.

Sona-Tone Audio Identification
Exclusive audio alerts differentiate between fish and schools of fish. This allows you to stay informed even when not actively watching the display.

High-Speed Pulse Transmission
Transmits at 5000 pulses per minute for superior shallow water detection. This improves responsiveness and accuracy in fast-changing environments.

Fishing Hot Spot GPS Integration
When paired with an optional GPS sensor, you can mark and return to productive fishing locations. Perfect for building and revisiting proven spots.

Real-Time A-Scope And Bottom Discrimination
Provides a real-time multi-color A-scope and bottom discrimination mode for enhanced target analysis. This helps distinguish fish from structure with greater precision.

Comprehensive Features And Alarms
Includes auto fishing and cruising modes, audio and visual alarms, and a built-in simulator. Designed to support both learning and advanced use.

Flexible Mounting And Durable Design
Supports overhead and flush mounting options with an IPX5 waterproof rating. Built to withstand demanding marine environments.

Specifications

• Product Type: digital echo sounder
• Display Size: 8.4"
• Display Type: color LCD, daylight viewable
• Frequency: 50/200 kHz
• Power Output: 1000W
• Depth Range: 0–3600'
• Pulse Rate: 5000 pulses per minute
• Color Levels: 8, 16, 64
• Technology: digital signal processing
• Functions: fish detection, bottom tracking, depth measurement
• Audio Features: Sona-Tone fish identification
• Display Features: real-time A-scope, bottom discrimination
• Connectivity: GPS input (optional), RGB output
• Additional Data: boat speed and surface water temperature (optional transducer)
• Water Rating: IPX5
• Mounting Options: overhead or flush mount
• Memory: stores up to 10 images
• Transducer Included: no
• Box Dimensions: 8" H x 11" W x 14" L
• Weight: 10.85 lbs
• UPC: 010407320748

FAQ

Q: Does the CVS-128 include a transducer?
A: No. The transducer is not included and must be purchased separately.

Q: How deep can this unit read?
A: It supports depth ranges up to 3600', making it suitable for deep water fishing.

Q: Is the display easy to read in sunlight?
A: Yes. The 8.4" color LCD is designed for excellent daylight visibility with multiple color levels.

Q: Can I save and return to fishing spots?
A: Yes. With an optional GPS sensor, you can mark and navigate back to fishing hotspots.

Q: What is the benefit of the A-scope feature?
A: The real-time A-scope provides immediate sonar feedback, helping you better identify fish and underwater structure.
